威尔逊信奥林匹亚珀金斯柴油发电机组CH10930 CH10931


详细描述:

威尔逊信奥林匹亚珀金斯柴油发电机组CH10930 CH10931燃油过滤器

项序 零配件号码 最近的零配件号码  描述

1 CH12434 1 CH12434 燃油过滤器座

1 CH11075 1 CH12434 燃油过滤器座

2 CH10609 1 CH10609 螺拴

3 CH10255 1 CH10255 垫圈

3 CH10541 1 CH10255 垫圈

4 CH10286 1 CH10286 堵塞

5 CH11880 1 CH11880 密封垫O形圈

5 CH10046 1 CH10046 密封垫O形圈

6 CH10287 1 CH10287 堵塞

7 T406205 1 T406205 密封垫O形圈

7 CH10048 1 CH10048 密封垫O形圈

8 CH10439 1 CH10439 手油泵

9 CH10008 1 CH10008 密封垫

10 CH10557 1 CH10557 螺拴

11 CH10277 1 CH10277 垫圈

11 CH10131 1 CH10131 密封垫O形圈

12 CH10848 1 CH10848 螺拴

13 CH10086 1 CH10086 垫圈

14 CH10836 1 CH10836 阀

15 T400188 1 T400188 密封垫O形圈

16 CH12017 1 CH12017 非回路阀

16 CH10457 1                  阀

16 CH12017 1 CH12017 非回路阀

20 CH10131 1 CH10131 密封垫O形圈

21 CH11410 1 CH11410 堵塞

22 CH11880 1 CH11880 密封垫O形圈

23 CH11411 1 CH11411 灰尘盾

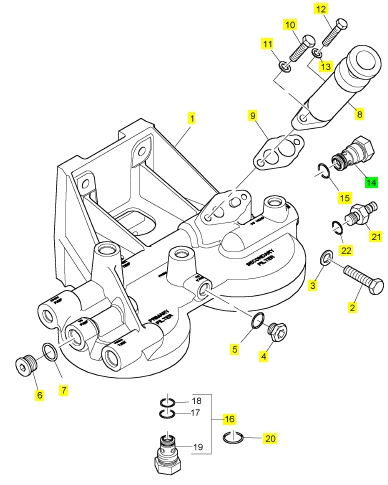

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12434 1 CH12434 FUEL FILTER HEAD

1 CH11075 1 CH12434 FUEL FILTER HEAD

2 CH10609 1 CH10609 BOLT

3 CH10255 1 CH10255 WASHER

3 CH10541 1 CH10255 WASHER

4 CH10286 1 CH10286 PLUG

5 CH11880 1 CH11880 SEAL - O RING

5 CH10046 1 CH10046 SEAL - O RING

6 CH10287 1 CH10287 PLUG

7 T406205 1 T406205 SEAL - O RING

7 CH10048 1 CH10048 SEAL - O RING

8 CH10439 1 CH10439 PRIMING PUMP

9 CH10008 1 CH10008 GASKET

10 CH10557 1 CH10557 BOLT

11 CH10277 1 CH10277 WASHER

11 CH10131 1 CH10131 SEAL - O RING

12 CH10848 1 CH10848 BOLT

13 CH10086 1 CH10086 WASHER

14 CH10836 1 CH10836 VALVE

15 T400188 1 T400188 SEAL - O RING

16 CH12017 1 CH12017 NON RETURN VALVE

16 CH10457 1 Check History VALVE

16 CH12017 1 CH12017 NON RETURN VALVE

20 CH10131 1 CH10131 SEAL - O RING

21 CH11410 1 CH11410 PLUG

22 CH11880 1 CH11880 SEAL - O RING

23 CH11411 1 CH11411 DUST SHIELD

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11135 1 CH11135 BRACKET

2 CH10943 1 CH10943 PIPE CLIP

3 CH10537 1 CH11895 BOLT

4 CH10541 2 CH10255 WASHER

5 CH10290 1 CH10798 NUT

6 CH10797 1 CH10797 BOLT

7 CH10100 1 CH10100 WASHER

8 CH10943 1 CH10943 PIPE CLIP

9 0748523 1 0748523 SCREW

10 0920004 1 0920004 WASHER

11 2238153 1 2238153 NUT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10999 1 CH10999 PIPE - HIGH PRESSURE FUEL

2 CH10841 2 CH10841 CONNECTION

3 CH10840 2 CH10840 SEAL - O RING

4 CH10943 1 CH10943 PIPE CLIP

5 CH11897 1 CH11897 BOLT

5 CH10794 1 CH11897 BOLT

6 CH10255 1 CH10255 WASHER

6 CH10541 1 CH10255 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11002 1 CH11002 PIPE - FUEL

2 CH10893 2 CH10893 CONNECTION

2 CH10893 1 CH10893 CONNECTION

3 CH10230 2 CH10230 SEAL - O RING

3 CH10230 1 CH10230 SEAL - O RING

4 CH11001 1 CH11001 PIPE - FUEL

4 CH10840 1 CH10840 SEAL - O RING

4 CH10841 1 CH10841 CONNECTION

5 CH10841 2 CH10841 CONNECTION

6 CH10840 2 CH10840 SEAL - O RING

项序 零配件号码 最近的零配件号码  描述

1 CH10930 1 CH10930 前燃油过滤器

4 CH11094 1                  过滤器壳

8 CH10931 1 CH10931 燃油过滤器

11 CH11096 1                  燃油过滤器壳

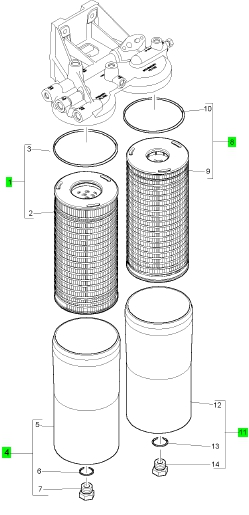

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10930 1 CH10930 PRE-FUEL FILTER

4 CH11094 1 Check History FILTER HOUSING

8 CH10931 1 CH10931 FUEL FILTER

11 CH11096 1 Check History FUEL FILTER HOUSING

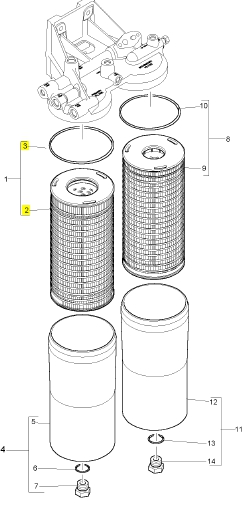

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 FUEL FILTER ELEMENT

3 CH12010 1 CH12010 SEAL

项序 零配件号码 最近的零配件号码  描述

2 1 燃油过滤器机械要素

3 CH12010 1 CH12010 密封垫

项序 零配件号码 最近的零配件号码  描述

9 1 燃油过滤器机械要素

10 CH12010 1 CH12010 密封垫
