Perkins发动机3117 L081


详细描述:

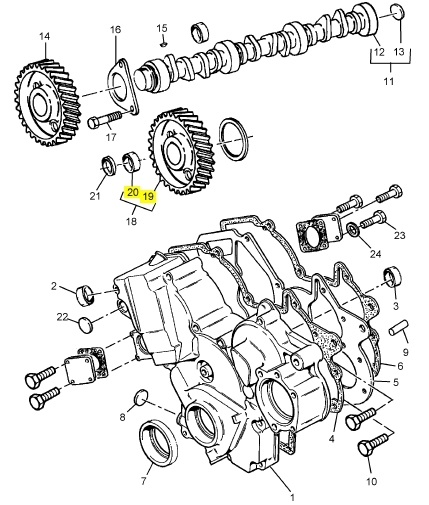

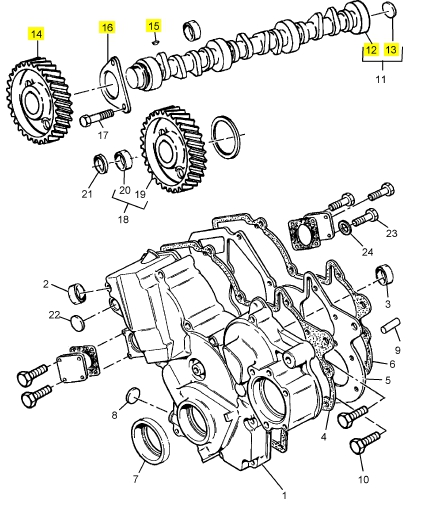

Perkins油发动机3117 L081凸轮轴

项目 零配件号码 最近的部分号码

12 1 桥

12 1 凸轮轴

13 2485 A601 1 2485 A601 栓塞

14 3117 L081 1 凸轮轴传动机构

15 L623CF03 1 L623CF03 半圆键

16 3617 H009 1 3617 H009 板

项目 零配件号码 最近的部分号码

19 3117 L181 1 4111 A017 惰轮传动机构

19 1 传动机构

20 3112 C001 1 3112 C001 惰轮传动机构衬套

20 3112 C001 2 3112 C001 惰轮传动机构衬套

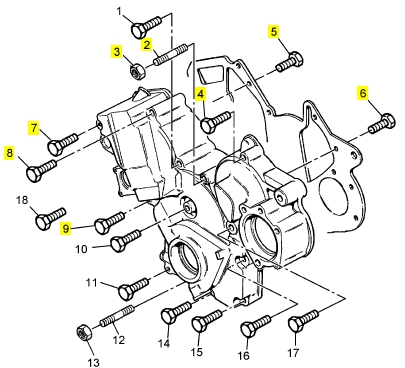

项目 零配件号码 最近的部分号码

1 2314 H013 1 2314 H013 螺旋

2 2313 M068 1 2313 M068 图钉

3 2318 A603 1 2318 A603 螺帽

4 2314 H013 1 2314 H013 螺旋

5 2314 H003 1 2314 H003 螺旋

6 2314 H003 1 2314 H003 螺旋

7 2314 H021 1 2314 H021 螺旋

8 2314 H013 1 2314 H013 螺旋

9 2314 H017 1 2314 H017 螺旋

10 2314 H005 1 2314 H005 螺旋

11 2314 H013 1 2314 H013 螺旋

12 2313 M068 1 2313 M068 图钉

13 2318 A603 1 2318 A603 螺帽

14 2314 H008 1 2314 H008 螺旋

15 2314 H008 1 2314 H008 螺旋

16 2314 K161 1 2314 K161 螺旋

17 2314 H012 1 2314 H012 螺旋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

9 U5LL0034 4 U5LL0034 PISTON KIT

(9) U5LL0034B 4 U5LL0034B PISTON KIT - OVERSIZE

10 4181A101 4 4181A101 PISTON RING KIT

(10) 4181A102 4 4181A102 PISTON RING KIT

11 U5LT0343 1 U5LT0343 GASKET KIT - TOP

12 U5LB0369 1 U5LB0369 GASKET KIT - BOTTOM

13 21826051 1 21826051 SEALING COMPOUND 50ml

14 3353A011 8 3353A011 CON ROD NUT

15 3275A004 8 3275A004 CON ROD BOLT

16 2418F546 1 2418F546 SEAL - FRONT END OIL

17 2418F547 1 2418F547 SEAL - REAR END OIL

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3684N023 1 3684N023 GASKET - SUMP

3 3688X003 2 3688X003 SEAL - OIL

4 3688X004 4 3688X004 SEAL - OIL

5 3685A009 1 3685A009 GASKET

6 3685R007 1 3685R007 GASKET - LIFT PUMP

7 3684C004 1 3684C004 GASKET

8 3687M031 1 3687M031 GASKET - TIMING CASE COVER

9 3687M036 1 3687M036 GASKET - TIMING CASE COVER

10 3687M032 1 3687M032 GASKET - TIMING CASE

11 2415A015 1 2415A015 SEAL - O RING

12 2415A039 1 2415A039 SEAL - O RING

13 2415H031 1 2415H031 SEAL - O RING

14 2415A092 1 2415A092 SEAL - O RING

15 2415A036 1 2415A036 SEAL - SENSOR

16 2415B135 1 2415B135 SEAL - O RING

17 2415715 4 2415715 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 U5LL0034B 4 U5LL0034B PISTON KIT - OVERSIZE

3 4181A102 4 4181A102 PISTON RING KIT

4 U5LT0343 1 U5LT0343 GASKET KIT - TOP

5 U5LB0369 1 U5LB0369 GASKET KIT - BOTTOM

6 21826051 1 21826051 SEALING COMPOUND 50ml

7 3353A011 8 3353A011 CON ROD NUT

8 3275A004 8 3275A004 CON ROD BOLT

9 2418F546 1 2418F546 SEAL - FRONT END OIL

10 2418F547 1 2418F547 SEAL - REAR END OIL

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3684N023 1 3684N023 GASKET - SUMP

3 3688X003 2 3688X003 SEAL - OIL

4 3688X004 4 3688X004 SEAL - OIL

5 3685A009 1 3685A009 GASKET

6 3685R007 1 3685R007 GASKET - LIFT PUMP

7 3684C004 1 3684C004 GASKET

8 3687M031 1 3687M031 GASKET - TIMING CASE COVER

9 3687M036 1 3687M036 GASKET - TIMING CASE COVER

10 3687M032 1 3687M032 GASKET - TIMING CASE

11 2415A015 1 2415A015 SEAL - O RING

12 2415A039 1 2415A039 SEAL - O RING

13 2415H031 1 2415H031 SEAL - O RING

14 2415A092 1 2415A092 SEAL - O RING

15 2415A036 1 2415A036 SEAL - SENSOR

16 2415B135 1 2415B135 SEAL - O RING

17 2415715 4 2415715 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3318A702 8 3318A702 VALVE GUIDE

3 3142H051 4 3142H051 INTAKE VALVE

4 3142A101 4 3142A101 EXHAUST VALVE

5 3174P408 8 3174P408 VALVE SPRING

6 3142W003 16 3142W003 VALVE COLLET
