威尔信2006柴油发电机组配件CV67245汽缸盖、OE50588进气门、OE50118气门座圈、OE43070气门导管、OE52907摇臂组合


详细描述:

威尔信2006柴油发电机组配件CV67245汽缸盖、OE50588进气门、OE50118气门座圈、OE43070气门导管、OE52907摇臂组合

项目 零配件号码 最近的部分号码 描述

1 OE51592 2 CV67245 汽缸盖装备 -主修科目

25 OE51276 2 OE51276 密合垫 - 汽缸盖 U961005B

25 OE50116 2 OE50116 密合垫 - 汽缸盖 U961004B

26 OE52732 42 OE52732 螺拴

27 2 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51592 2 CV67245 CYLINDER HEAD KIT - MAJOR

25 OE51276 2 OE51276 GASKET - CYLINDER HEAD U961005B

25 OE50116 2 OE50116 GASKET - CYLINDER HEAD U961004B

26 OE52732 42 OE52732 BOLT

27 2 BOLT

项目 零配件号码 最近的部分号码 描述

2 OE50117 1 OE50117 汽缸盖装备 -主修科目

13 OE50588 3 OE50588 进气门

14 OE42266 3 OE42266 位子

15 CV68907 3 CV68907 气门弹簧外部的

15 OE42300 3 CV68907 气门弹簧外部的

16 OE30935 6 OE30935 位子

17 OE2582 6 OE2582 气门筒夹

18 OE50589 3 OE50589 排气气门

19 OE42266 3 OE42266 位子

20 OE2582 6 OE2582 气门筒夹

21 CV68908 3 CV68908 气门弹簧内部

21 OE42301 3 CV68908 气门弹簧内部

22 OE5718 6 OE5718 密封 - O 的圈

23 CV68907 3 CV68907 气门弹簧外部的

23 OE42300 3 CV68907 气门弹簧外部的

24 CV68908 3 CV68908 气门弹簧内部

24 OE42301 3 CV68908 气门弹簧内部

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 OE50117 1 OE50117 CYLINDER HEAD KIT - MAJOR

13 OE50588 3 OE50588 INTAKE VALVE

14 OE42266 3 OE42266 SEAT

15 CV68907 3 CV68907 VALVE SPRING OUTER

15 OE42300 3 CV68907 VALVE SPRING OUTER

16 OE30935 6 OE30935 SEAT

17 OE2582 6 OE2582 VALVE COLLET

18 OE50589 3 OE50589 EXHAUST VALVE

19 OE42266 3 OE42266 SEAT

20 OE2582 6 OE2582 VALVE COLLET

21 CV68908 3 CV68908 VALVE SPRING INNER

21 OE42301 3 CV68908 VALVE SPRING INNER

22 OE5718 6 OE5718 SEAL - O RING

23 CV68907 3 CV68907 VALVE SPRING OUTER

23 OE42300 3 CV68907 VALVE SPRING OUTER

24 CV68908 3 CV68908 VALVE SPRING INNER

24 OE42301 3 CV68908 VALVE SPRING INNER

项目 零配件号码 最近的部分号码 描述

3 OE50118 3 OE50118 气门座圈

(3) OE50178 3 OE50178 气门座圈

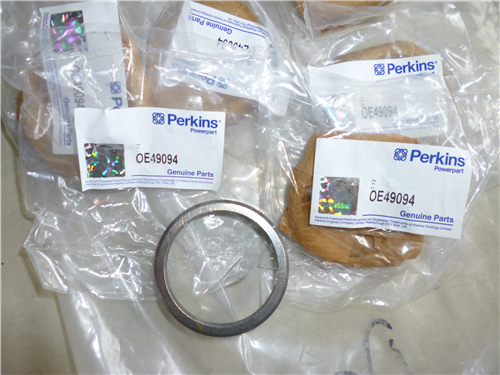

4 OE49094 3 OE49094 气门座圈

(4) OE50149 3 OE50149 气门座圈

5 OE43070 3 OE43070 气门导管

6 OE46001 3 OE46001 气门导管

7 OE50207 3 OE50207 套筒

8 OE49978 3 OE49978 封闭砂条

9 ST33602 1 ST33602 栓塞

10 ST33606 5 ST33606 栓塞

11 ST33609 5 ST33609 栓塞

12 ST33613 4 ST33613 栓塞

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

3 OE50118 3 OE50118 INSERT

(3) OE50178 3 OE50178 INSERT

4 OE49094 3 OE49094 INSERT

(4) OE50149 3 OE50149 INSERT

5 OE43070 3 OE43070 VALVE GUIDE

6 OE46001 3 OE46001 VALVE GUIDE

7 OE50207 3 OE50207 SLEEVE

8 OE49978 3 OE49978 SEALING RING

9 ST33602 1 ST33602 PLUG

10 ST33606 5 ST33606 PLUG

11 ST33609 5 ST33609 PLUG

12 ST33613 4 ST33613 PLUG

项目 零配件号码 最近的部分号码 描述

1 OE52907 2 OE52907 摇臂组合

21 UF1569 12 UF1569 固正螺钉

26 OE42184 12 OE42184 PUSHROD

27 OE51590 12 OE51590 挺杆

28 OE51761 1 OE51761 油管

29 OE49346 3 OE49346 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE52907 2 OE52907 ROCKER SHAFT ASSEMBLY

21 UF1569 12 UF1569 SETSCREW

26 OE42184 12 OE42184 PUSHROD

27 OE51590 12 OE51590 TAPPET

28 OE51761 1 OE51761 OIL PIPE

29 OE49346 3 OE49346 BOLT

项目 零配件号码 最近的部分号码 描述

2 OE50459/1 1 OE50459/1 摇臂 ASSY

4 OE50854 2 OE52906 托架

4 OE52906 2 OE52906 托架

5 UF1502 1 UF1502 螺拴

6 0920053 1 0920053 垫圈

7 OE50852 1 OE50852 托架

8 OE50853 3 OE50853 图钉

9 KB14169 2 OE52557 CIRCLIP

10 OE431 2 OE431 垫圈

11 OE429 2 OE429I 摇臂弹簧

12 OE42278 6 OE42278 摇臂组合

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 OE50459/1 1 OE50459/1 ROCKER SHAFT ASSY - MINOR

4 OE50854 2 OE52906 PEDESTAL

4 OE52906 2 OE52906 PEDESTAL

5 UF1502 1 UF1502 BOLT

6 0920053 1 0920053 WASHER

7 OE50852 1 OE50852 PEDESTAL

8 OE50853 3 OE50853 STUD

9 KB14169 2 OE52557 CIRCLIP

10 OE431 2 OE431 WASHER

11 OE429 2 OE429I ROCKER SHAFT SPRING

12 OE42278 6 OE42278 ROCKER ARM ASSEMBLY

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

13 OE28549 1 OE28549 BUSH

14 OE41699 1 OE41699 SCREW

15 OE42293 1 OE42293 LOCKNUT

项目 零配件号码 最近的部分号码 描述

1 OE51437 2 OE51437 汽缸盖盖

2 CV67896 2 CV67896 密合垫 -CYL。 冒口盖

3 32726535 6 32726535 螺帽

4 0920009 6 0920009 垫圈

5 33817132 6 密封

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51437 2 OE51437 CYLINDER HEAD COVER

2 CV67896 2 CV67896 GASKET - CYL. HEAD COVER

3 32726535 6 32726535 NUT

4 0920009 6 0920009 WASHER

5 33817132 6 Check History SEAL

项目 零配件号码 最近的部分号码 描述

1 OE50326 1 OE50326 车桥

2 OE51293 1 OE51293 惰轮传动机构

8 OE2297 2 OE2297 合钉

9 UF1604 3 UF1604 固正螺钉

10 0920055 3 0920055 垫圈

11 OE2296 2 OE2296 圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50326 1 OE50326 AXLE

2 OE51293 1 OE51293 IDLER GEAR

8 OE2297 2 OE2297 DOWEL

9 UF1604 3 UF1604 SETSCREW

10 0920055 3 0920055 WASHER

11 OE2296 2 OE2296 RING
