威尔逊信P380E柴油发电机组OX7218A51Z燃油泵、OD20743喷油器、OD20716高压油管


详细描述:

威尔逊信P380E柴油发电机组OX7218A51Z燃油泵、OD20743喷油器、OD20716高压油管

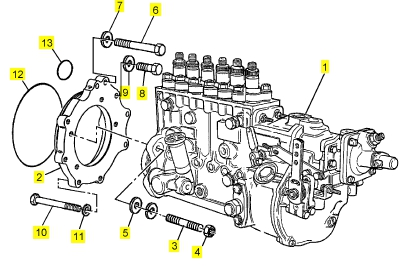

项目 零配件号码 最近的部分号码 描述

1 OX7218A51Z 1 OX7218A51Z 燃油泵

1 OX7218/A51 1 OX7218A51Z 燃油泵

(1) OX7218/A51R 1 OX7218A51R 燃料 INJ 泵 -EXCH

2 OE49373 1 OE49373 承接器

3 OE49659 4 OE49659 图钉

4 CV3000 4 CV3000 锁紧螺母

5 2131 A010 4 2131 A010 垫圈

6 0746601 1 0746601 螺旋

7 0920055 1 0920055 垫圈

8 UF1506 4 UF1506 螺拴

9 0920053 4 0920053 垫圈

10 UF1521 4 UF1521 螺拴

11 0920053 4 0920053 垫圈

12 ST10638 1 ST10638 封闭砂条

13 OE50114 1 OE50114 封闭砂条

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OX7218A51Z 1 OX7218A51Z FUEL INJECTION PUMP

1 OX7218/A51 1 OX7218A51Z FUEL INJECTION PUMP

(1) OX7218/A51R 1 OX7218A51R FUEL INJ PUMP - EXCH

2 OE49373 1 OE49373 ADAPTOR

3 OE49659 4 OE49659 STUD

4 CV3000 4 CV3000 LOCKNUT

5 2131A010 4 2131A010 WASHER

6 0746601 1 0746601 SCREW

7 0920055 1 0920055 WASHER

8 UF1506 4 UF1506 BOLT

9 0920053 4 0920053 WASHER

10 UF1521 4 UF1521 BOLT

11 0920053 4 0920053 WASHER

12 ST10638 1 ST10638 SEALING RING

13 OE50114 1 OE50114 SEALING RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50974 1 OE50974 GUARD

2 OE50981 1 OE50981 GUARD

3 UF1503 4 UF1503 BOLT

4 0920053 4 0920053 WASHER

5 OE35572 4 OE35572 WASHER

6 OE49123 1 OE49123 MOUNTING

7 0920053 2 0920053 WASHER

8 2318A208 2 2318A208 NUT

9 UF1560 2 UF1560 SETSCREW

10 OE23497 2 OE23497 NUT

11 ST15903 2 ST15903 WASHER

12 OE50659 2 OE50659 BUSH

13 UF1661 2 UF1661 BOLT

14 OE50975 1 OE50975 BRACKET

15 UF1503 3 UF1503 BOLT

16 0920053 3 0920053 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51003 1 OE51003 PIPE

2 OE9088 1 OE9088 CLIP

3 OE7660 1 OE7660 BUSH

4 UF1601 1 UF1601 SETSCREW

5 0920055 1 0920055 WASHER

6 OE13620 1 OE7661 CLIP

7 OE7660 1 OE7660 BUSH

8 UF1501 1 UF1501 BOLT

9 0920053 1 0920053 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50556 1 Check History AIR CYLINDER

2 OE52567 1 OE52567 ADAPTOR

3 OE48159 1 OE48159 BALL JOINT

4 UF4553 2 UF4553 LOCKNUT

5 ST49206 1 ST49206 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50987 1 OE50987 LEVER

2 ST44409 1 ST44409 SETSCREW

3 2134A005 1 2134A005 WASHER

4 OE52052 1 OE52052 LEVER

12 OE52043 1 OE52043 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE52014 1 OE52014 BRACKET

2 OE52024 6 OE52024 BUSH

3 OE52022 3 OE52022 SPACER

4 UF1558 3 UF1558 SETSCREW

5 OE52018 1 OE52018 ACTUATOR

(5) OE52018R 1 OE52018R ACTUATOR

6 ST20552 1 CV72340 ADAPTOR

7 ST49852 1 ST49852 WASHER

8 OE52019 1 OE52019 LEVER

9 OE29083 1 OE29083 BALL JOINT

10 OE7669 1 OE7669 SEAL - O RING

11 OE51344 1 OE51344 GAITER

12 CV8502 3 CV8502 CABLE TIE

13 OE46880/42 1 CV69296 CONTROL ROD

14 OE51344 1 OE51344 GAITER

15 OE7669 1 OE7669 SEAL - O RING

16 OE29083 1 OE29083 BALL JOINT

17 OE50988 1 OE50988 BALL JOINT

18 UF4353 1 UF4353 UNF NUT

19 ST16258 1 ST16258 WASHER

20 OE51255 1 OE51255 NUT

21 ST15902 2 ST15902 WASHER

22 ST43566 2 ST43566 METRIC BOLT

23 2318A209 2 2318A209 NUT

24 2131A010 2 2131A010 WASHER

25 OE32720 2 OE32720 WASHER

26 2134A010 2 2134A010 WASHER

27 UF1530 5 UF1530 BOLT

28 0920053 5 0920053 WASHER

意见

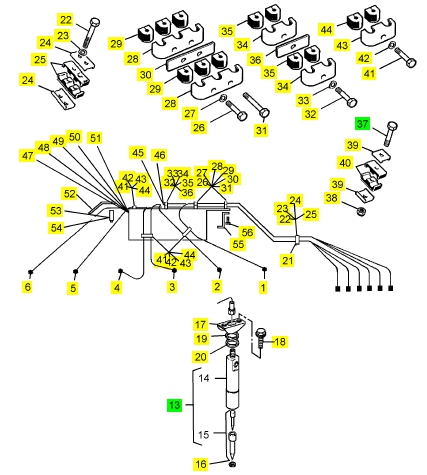

1 OD20716 1 OD20716 高压油管 - 燃料 INJ 没有 1 CYL

2 OD20717 1 OD20717 高压油管 - 燃料 INJ 没有 2 CYL

3 OD20718 1 OD20718 高压油管 - 燃料 INJ 没有 3 CYL

4 OD20719 1 OD20719 高压油管 - 燃料 INJ 没有 4 CYL

5 OD20720 1 OD20720 高压油管 - 燃料 INJ 没有 5 CYL

6 OD20721 1 OD20721 高压油管 - 燃料 INJ 没有 6 CYL

13 OD20743 6 OD20743 喷油器

(13) OD20743R 6 OD20743R 喷油器 -交换

16 2411 B118 6 R2411B118 喷油器垫圈

17 3662 K002 6 3662 K002 砂箱夹

18 OE51520 12 CV72464 螺拴

19 OE50256 6 OE50256 距离块

20 33813131 6 3311 A042 密封

21 OE51129 1 OE51129 托架

22 2182010 2 2182010 螺旋

23 ST16256 2 ST16256 垫圈

24 36511127 4 36511127 板

25 36845115 4 36845115 夹

26 UF1513 5 UF1513 螺拴

27 0920053 6 0920053 垫圈

28 OD3634 6 OD3634 复缘

29 OD10407 18 OD10407 挡板

30 OE50422 3 OE50422 板

31 UF1517 1 UF1517 螺拴

32 UF1507 2 UF1507 螺拴

33 0920053 2 0920053 垫圈

34 OD2426 2 OD2426 复缘

35 OD10407 4 OD10407 挡板

36 OD4784 1 OD4784 垫板

37 0726505 2 0726505 固正螺钉

38 2211401 2 2211401 螺帽

39 36511123 4 36511123 板

40 36844116 4 36844116 管夹

41 UF1507 1 UF1507 螺拴

42 0920053 2 0920053 垫圈

43 OD2426 1 OD2426 复缘

44 OD10407 2 OD10407 挡板

45 OE51255 2 OE51255 螺帽

46 ST15902 3 ST15902 垫圈

47 OE51128 1 OE51128 托架

48 UF1601 3 UF1601 固正螺钉

49 0920055 3 0920055 垫圈

50 UF1501 2 UF1501 螺拴

51 0920053 2 0920053 垫圈

52 OE51547 1 OE51547 托架

53 OE51558 1 OE51558 距离块

54 ST25765 1 ST25765 螺拴

55 OE51546 1 OE51546 托架

56 UF1504 1 UF1504 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OD20716 1 OD20716 PIPE - FUEL INJ NO 1 CYL

2 OD20717 1 OD20717 PIPE - FUEL INJ NO 2 CYL

3 OD20718 1 OD20718 PIPE - FUEL INJ NO 3 CYL

4 OD20719 1 OD20719 PIPE - FUEL INJ NO 4 CYL

5 OD20720 1 OD20720 PIPE - FUEL INJ NO 5 CYL

6 OD20721 1 OD20721 PIPE - FUEL INJ NO 6 CYL

13 OD20743 6 OD20743 INJECTOR

(13) OD20743R 6 OD20743R INJECTOR - EXCHANGE

16 2411B118 6 R2411B118 INJECTOR WASHER

17 3662K002 6 3662K002 CLAMP

18 OE51520 12 CV72464 BOLT

19 OE50256 6 OE50256 DISTANCE PIECE

20 33813131 6 3311A042 SEAL

21 OE51129 1 OE51129 BRACKET

22 2182010 2 2182010 SCREW

23 ST16256 2 ST16256 WASHER

24 36511127 4 36511127 PLATE

25 36845115 4 36845115 CLIP

26 UF1513 5 UF1513 BOLT

27 0920053 6 0920053 WASHER

28 OD3634 6 OD3634 SHROUD

29 OD10407 18 OD10407 DAMPER

30 OE50422 3 OE50422 PLATE

31 UF1517 1 UF1517 BOLT

32 UF1507 2 UF1507 BOLT

33 0920053 2 0920053 WASHER

34 OD2426 2 OD2426 SHROUD

35 OD10407 4 OD10407 DAMPER

36 OD4784 1 OD4784 BASE PLATE

37 0726505 2 0726505 SETSCREW

38 2211401 2 2211401 NUT

39 36511123 4 36511123 PLATE

40 36844116 4 36844116 PIPE CLIP

41 UF1507 1 UF1507 BOLT

42 0920053 2 0920053 WASHER

43 OD2426 1 OD2426 SHROUD

44 OD10407 2 OD10407 DAMPER

45 OE51255 2 OE51255 NUT

46 ST15902 3 ST15902 WASHER

47 OE51128 1 OE51128 BRACKET

48 UF1601 3 UF1601 SETSCREW

49 0920055 3 0920055 WASHER

50 UF1501 2 UF1501 BOLT

51 0920053 2 0920053 WASHER

52 OE51547 1 OE51547 BRACKET

53 OE51558 1 OE51558 DISTANCE PIECE

54 ST25765 1 ST25765 BOLT

55 OE51546 1 OE51546 BRACKET

56 UF1504 1 UF1504 BOLT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

14 OD20364 1 OD20364 HOLDER

15 OD20744 1 OD20744 INJECTOR NOZZLE
