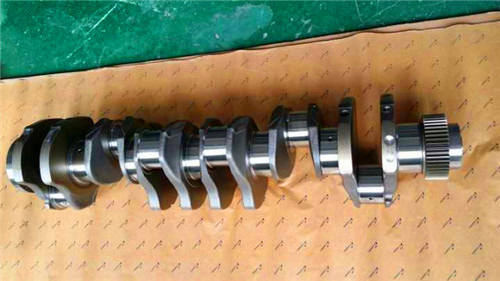

john deere约翰迪尔强鹿柴油机曲轴


详细描述:

麦克福斯约翰迪尔发动机零配件

约翰迪尔 6068T/H 6.8T/H 活塞(米)RE55512/RE505102


PowerTech
系列
发动机和设备型号
6068T/H
6.8T/H
代码 4810, 4820, 4824
孔径: 4.19 in 106.5 mm
销径 Ø: 1.6250 in (+/- .0002) = 41mm

发动机型号:
6068TF275
6068HF252
6068TF220
6068HF275
6068TF252
6068TF258
6068SFM50
连杆(米):
R114081 (Machined) (13)
R500335 (Fractured) (13)
连杆(米):
RE55512
RE505102

洋马发动机

农业
4700
6605
6615
6715
7210
7405
7410
7510
7610
9410
原装
6.8L
工程机械
200LL
200LC
230LC
270LC
540G
540G III
540GLL
544H
544HLL
TC544H
548G
548G II
548G III
624H
624HLL
TC624H
640G
640G II
640G III
643G
648G
648G II
648G III
670C
670CH
672CH
698G
710D
843G
850G
850J
发电机组
J120U
R130U
J130K
R135
J150U
R165
J165K
R170U
J175U
R200
J200K
R200U
NEUSON
mht 18002HVT Harvester
Rottne SMV Rapid Forwarder
发动机大修包
TRE66097
(点击查看套件内容)
TRE66097A
(点击查看套件内容)
(12)
发动机内部修理套件
TIK66097
(点击查看套件内容)
TIK66097A
(点击查看套件内容)
(12)
活塞缸套组件
TRE507850
(RE505112)
组成:
a)
TRE55512
b)
TRE66820
c)
TR123177
d)
TR116383
e)
TAR65507
f)
TR54114
主轴瓦
TRE65165
Std.
TRE65911
0.010
TRE65165B
0.020
(8)
需要6片
止推轴承
TRE65168
Std.
TRE65912
0.010
TRE65168B
0.020
(8)
需要1片
连杆瓦
TRE65908
Std.
TRE65909
0.010
TRE65908B
0.020
(8)
需要6片
1)
前油封
TRE505515
(5)
2)
后油封
TRE44574
3)
齿环
TR114282
(142T)
TR28811
(129T)
4)
曲轴
TRE515785
(3)
TRE505921
(4)
5)
密封
TH35244
1)
密封圈维修包
TRE501456
2)
衬垫套
TRE66085
3)
气缸垫
TR116516
4)
机油底壳垫圈
TR123354
5)
气门室盖衬垫
TR123543
6)
Timing Cover Gsk
TR123421
TR123425
1)
连杆衬套
TR114082
x6
2)
连杆螺栓
TR114083
x12
(1)
TR501124
x12
(1)
3)
凸轮轴衬套
TR119874
x1
4)
凸轮随动件
TR123565
x12
1)
气缸盖螺钉
TR85363
x26
(2)
2)
紧张轮
TRE518097
(7)
TRE68715
(7)
3)
连杆
TRE500608
4)
机油冷却器
TRE59296
(5 板)
TRE56690
(7 板)
TRE59298
(9 板)
1)
水泵
TRE500734
(7)
TRE504911
(7)
2)
水泵盖
TRE508566
3)
水泵衬垫
TR123417
4)
凸轮轴衬套
TRE504914

阀门部分

进气门
TR98062
Std.
TR97490
0.015
排气门
TR90692
Std.
TR97492
0.015
1)
插入阀:进气
TR98063
Std.
TR98335
O/S
2)
插入阀:排气
TR85687
Std.
TR93910
O/S
1)
气门密封
TRE31617
2)
气门锁夹
TR91889
1)
弹簧阀
TR26125
2)
旋转阀
TRE60005
1)
节温器
TRE522076
180° F
(7)
TRE528652
180o F
(7)
TRE540550
180° F
(7)
TRE64354
180° F
(7)
2)
节温器盖
TR501130
(7)
3)
水温传感器
TRE51774
(7)
4)
水温传感器
TRE52722
(7)
5)
油压传感器
TRE167207
(7)
6)
曲轴传感器
TRE519144
(7)
1)
喷油器
TRE60062
(Non Turbo)
TRE48786
(Turbo)
TRE531436
(6)
2)
试剂盒
TMX506
3)
密封
TR92352
TR48000
火花塞
1)
TRE502079
(11 V)
2)
TRE504580
x6
(10 V)
3)
空气加热器
TRE502668
(12 V)
1)
输油泵
TRE66153
(9)
TRE68345
(10)
TRE502513
(11)
2)
电动燃油泵
TAL155607
(7)
3)
电动燃油泵
TRE509530
(7)
4)
燃油泵套件
TRE505825
(7)

(1)使用机械分离连杆使用TR114083棒螺栓,以及使用TR501124带裂隙分离连杆的棒式螺栓。

(2)将所有R78558带帽螺丝更换为法兰式带帽螺丝TR85363。

(3)曲轴(m)R116076,直鼻。

(4)曲轴(m)R503470,锥形鼻。

(5)1件组合式密封和穿套;替换TRE59810,RE538097。

(6)与Stanadyne DE10注射泵一起使用。

(7)检查应用程序是否正确使用。

(8)在曲轴加工过程中必须保持正确的轴承轴颈半径,以确保正确的操作。

(9)线路连接都是线程化的。

(10)线路连接是一个软管倒钩&一个线程。

(11)线路连接是两个软管倒钩。

(12)带连杆R500000。

强鹿JOHN DEERE柴油机配件、发动机配件、发电机组:
RE523502、RE518520、RE68345、RE53307、RE62240、RE533095、RE502513、RE38009、R30402、RE521538、RE521540、RE62240、P524837、RE60021、RE507236、RE59588、RE549153、RE530870、SE501610、SE501609、RE70960
