沃尔沃发动机柴油发电机加大连杆瓦曲轴瓦270793销售维修保养配件

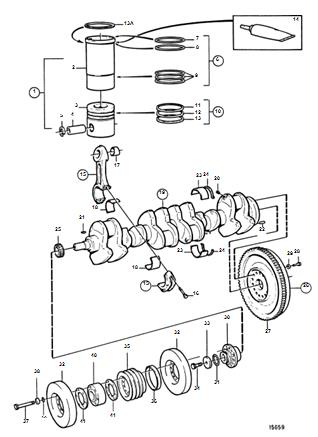

Ref

Part No.

Qty

Description

Notes

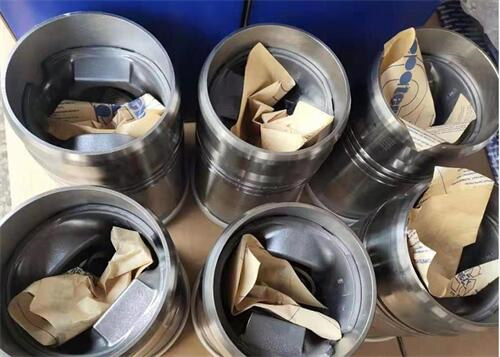

1

3826320

6

Cylinder liner kit

SN2160022234-. Included in conversion kit 3826321.. Rebuilt engines are marked wi

Bulletin 47-05

New Piston & Piston Rings

1

3830285

6

Cylinder liner kit

Included in conversion kit 3826321.. Rebuilt engines are marked with two punch mar

2

6

Cylinder liner

3

6

Piston

4

1556939

6

Piston pin

(1556401) L=115mm. Included in conversion kit 3826321.. Rebuilt engines are marke

5

914532

12

Snap ring

6

270935

6

Sealing ring kit

7

1543507

6

Sealing ring

8

6

Sealing ring

9

18

Sealing ring

10

3837146

6

Piston ring kit                   (876831). Included in conversion kit 3826321.. Rebuilt engines are marked with two p

11

6

Compression ring

12

6

Compression ring

13

6

Oil scraper ring

13A

1548125

X

Shim

TH=0,20mm

1548126

X

Shim

TH = 0,30mm

1548127

X

Shim

TH = 0,50mm

14

1161277

X

Sealant

20g

15

1556319

6

Connecting rod

SN2160022234-. Included in conversion kit 3826321.. Rebuilt engines are marked wi

16

1543035

12

Screw

17

1556321

6

Bushing

FOR 1556319

18

270796

6

Big end bearing kit

STD D

270797

6

Big end bearing kit

U.S=0,25mm

270798

6

Big end bearing kit

U.S=0,50mm

270799

6

Big end bearing kit

U.S=0,75mm

19

863792

1

Crankshaft

20

978130

6

Plug

21

422253

1

Woodruff key

22

950645

1

Pin

23

270792

7

Main bearing kit

STD D

270793

7

Main bearing kit

U.S=0,25mm

270794

7

Main bearing kit

U.S=0,50mm

270795

7

Main bearing kit

U.S=0,75mm

24

270929

1

Thrust washer kit

STD D

270930

1

Thrust washer kit

O.S=0,10mm

270931

1

Thrust washer kit

O.S=0,20mm

270932

1

Thrust washer kit

O.S=0,30mm

25

1543444

1

Gear

26

3825678

1

Flywheel

SN-2160048210

889617

1

Flywheel

SN2160048211-

27

8193939

1

Gear ring

28

849912

14

Screw

1677893

14

Screw

29

1543563

14

Washer

30

848851

1

Hub

31

945512

1

O-ring

32

1543834

2

Vibration damper

33

422124

1

Washer

34

862504

1

Screw

35

3825893

1

V-belt pulley

3 GROOVE. Earlier production of 6 ea of screw is replaced by 12 ea screw.

36

37

38

39

40

41

3829683

973253

4956010

955974

3825885

3825886

1       Wear ring

12   Screw                                  Earlier production of 6 ea of screw is replaced by 12 ea screw.

12   Washer                               Earlier production of 6 ea of screw is replaced by 12 ea screw.

12   O-ring                                  Earlier production of 6 ea of screw is replaced by 12 ea screw.

1       Hub

2       Gasket                                  Earlier production of 6 ea of screw is replaced by 12 ea screw.
