沃尔沃TAD1630GE柴油发电机燃油泵系统零件图册

沃尔沃TAD1630GE柴油发电机燃油泵系统零件图册

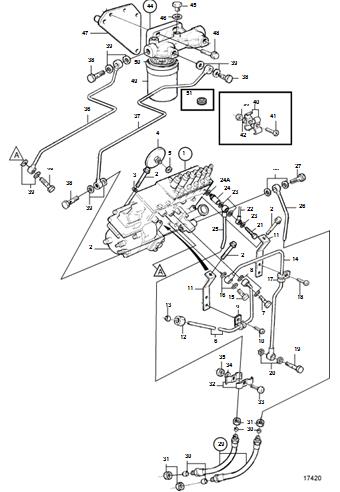

Ref    Part No.   Qty                Description                                      Notes

1              865566       1   Injection pump                                       REPL BY 3828998

3828998             Injection pump, Comps. not spec.

3803751             Injection pump, exch                              Exchange unit 1A                                1       Actuator

1B      863474       1       Feed pump

2              965189       4   Flange screw 3           190509       3   Washer

4         477173       1   Pressure equalizer

5         982723       1   Gasket                                                     (969011)

6              862997       1   Oil feed pipe

7              48634          1   Hollow screw 8           947281       2   Gasket

9         952623       1   Clamp

10        956092       1   Screw

11      1543721       2   Bracket

12        954356       1   Cap nut

13        954364       1   Fitting

14      3826169       1   Oil return pipe                                        (1543962)

15          48634        1   Hollow screw 16             947281       2   Gasket

17        952623       1   Clamp

18        956092       1   Screw

19          25167        1   Hollow screw

20        982723       2   Gasket                                                     (969011)

21                                               1   Leak-off line

22               74033          1   Hollow screw 23             947620       2   Gasket

24                  16496        1   Hollow screw

25                  25167        1   Hollow screw

26        982723       2   Gasket                                                     (969011)

27        479775       1   Overflow valve                                       (35096). M14

3825154       1   Overflow valve                                       (35096). M16

27A        15304        1   Gasket

28      3825719       1   Pipe                                                          (866516)

29        849210       1   Fuel pipe 30             976929       1   Gasket

31        982723       2   Gasket                                                     (969011)

32               865737       2   Fuel hose

33               956969       4       Ferrule 34             956983       4       Nut

35        402404       2   Clamp

36        956094       1   Screw

37        955892       1   Washer

38               945407       1   Flange nut

39               865331       1   Fuel pipe

40               865330       1   Fuel pipe 41             404279       4   Clamp 42             956095       2   Screw 43             955892       2   Washer 44             955781       2   Nut

45          25167        3   Hollow screw

46        982723       8   Gasket                                                     (969011)

47           1676832       1   Filter housing                                         REPL BY 8194541

8194541       1   Filter housing

48                                               1       Screw

49                                               1       Gasket

50               849769       1   Bracket

51               965185       2   Flange screw

1 865566 1注射泵REPL BY 3828998



3828998注射泵，组件。不符合规范。

3803751注射泵，不包括交换装置1A 1执行机构

1B 863474 1给水泵



2 965189 4法兰螺钉3 190509 3垫圈

4 477173 1压力均衡器

5 982723 1垫圈（969011）

6 862997 1供油管

7 48634 1空心螺钉8 947281 2垫圈

9 952623 1个夹子

10 956092 1个螺钉

11 1543721 2支架

12 954356 1带帽螺母

13 954364 1接头

14 3826169 1回油管（1543962）

15 48634 1空心螺钉16 947281 2垫圈

17 952623 1个夹子

18 956092 1个螺钉

19 25167 1空心螺钉

20 982723 2垫圈（969011）

21 1泄漏管线

22 74033 1空心螺钉23 947620 2垫圈

24 16496 1空心螺钉

25 25167 1空心螺钉

26 982723 2垫圈（969011）

27 479775 1溢流阀（35096）。14米

3825154 1溢流阀（35096）。M16米

27A 15304 1垫片

28 3825719 1根管道（866516）

29 849210 1燃油管30 9766929 1垫片

31 982723 2垫圈（969011）

32 865737 2燃油软管

33 956969 4卡套34 956983 4螺母

35 402404 2夹具

36 956094 1个螺钉

37 955892 1个垫圈

38 945407 1法兰螺母

39 865331 1燃油管

40 865330 1燃油管41 404279 4卡箍42 956095 2螺钉43 955892 2垫圈44 955781 2螺母

45 25167 3空心螺钉

46 982723 8垫圈（969011）

47 1676832 1过滤器外壳REPL BY 8194541



8194541 1滤清器壳体



48 1个螺钉

49 1垫片

50 849769 1支架

51 965185 2法兰螺钉
