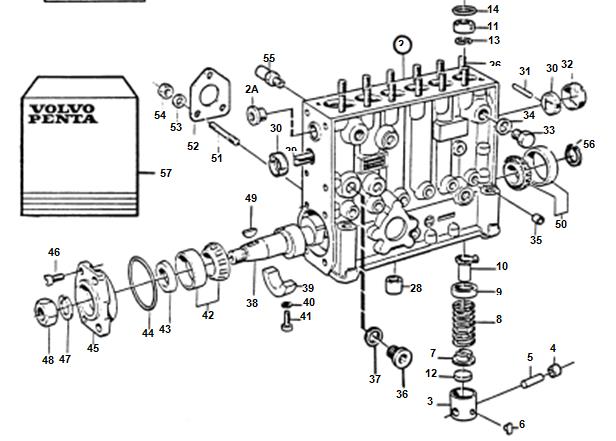

沃尔沃TAD1631G/GE柴油机喷油泵零部件864855

Ref

1

Part No.

864855

Qty

1

Description

Injection pump

Notes

3803713

1

Injection pump, exch

Exchange unit

1A

863476

1

Governor

1B

863474

1

Feed pump

2

1

Pump housing

2A

1

Plug

3

6

Push rod

4

6

Bearing

5

6

Shaft

6

6

Locating plate

7

862408

6

Spring disc

8

862407

6

Compression spring

9

239984

6

Spring disc

10

862406

6

Sleeve

11

6

Cardboard tube

12

6

Pressure plate

13

6

Lock ring

14

862402

6

O-ring

15

16

240422

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X 12

Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer O-ring

TH=0,40mm TH = 0,45mm TH = 0,50mm TH = 0,60mm TH = 0,70mm TH = 0,75mm TH = 0,80mm TH = 0,85mm TH = 0,90mm TH = 0,95mm TH = 1,00mm TH = 1,05mm TH = 1,10mm TH = 1,15mm TH = 1,20mm TH = 1,25mm TH = 1,30mm TH = 1,35mm TH = 1,40mm TH = 1,45mm TH = 1,50mm TH = 1,55mm TH = 1,60mm TH = 1,65mm TH = 1,70mm TH = 1,75mm TH=1,80mm TH = 1,90mm TH=2,00mm TH=2,10mm TH=2,15mm TH=2,20mm

17

863498

6

Pump element

18

1697951

6

Washer

19

863499

6

Delivery valve

20

862397

6

Compression spring

21

240972

X

Washer

TH=0,20mm

22

240973

X 6

Washer Spacer

TH = 0,50mm

23

862400

6

O-ring

24

6

Holder

25

12

Washer

26

12

Stud

27

12

Nut

28

6

Cardboard tube

29

1

Control rod

30

2

Guide sleeve

31

1

Lock pin
