柴油滤清器

John Deere约翰迪尔强鹿柴油发动机柴油滤清器配件销售维修维护技术零件资料手册

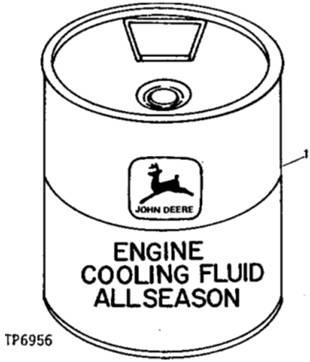

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 EPH76215-005 COOL-GARD AR X 5L

EPH76215-025 COOL-GARD AR X 25L

EPH76215-050 COOL-GARD AR X 50L

EPH76215-200 COOL-GARD AR X 200L

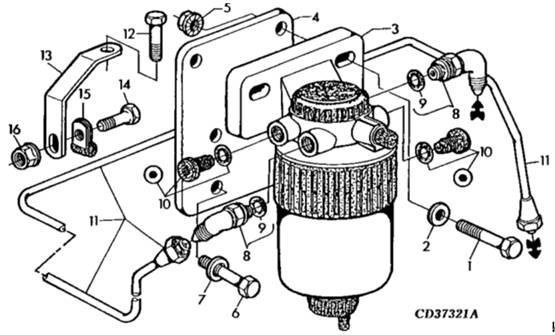

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 19H1732 CAP SCREW 2 X 3/8" X 1-1/4"

2 24M7106 WASHER 2 X 10 X 18 X 2.500 MM

3 .................. FUEL FILTER 1 X

4 R119988 BRACKET 1 X

5 N10215 LOCK NUT 2 X 3/8"

6 19H2284 CAP SCREW 2 X 3/8" X 7/8"

7 12H304 LOCK WASHER 2 X 3/8"

8 AT32333 ELBOW FITTING 2 X 1/2"-20UNF X 1/2"-20UNF

9 R26286 O-RING 2 X

10 RE62158 PIPE PLUG 2 X 1/2"-20UNF

11 RE56667 FUEL LINE 1 X

12 19H2021 CAP SCREW 1 X 3/8" X 5/8"

13 R120966 BRACKET 1 X

14 19H2664 CAP SCREW 1 X 5/16" X 3/4", (SAE 8)

15 T13914 CLAMP 1 X

16 A22698 NUT 1 X 5/16"

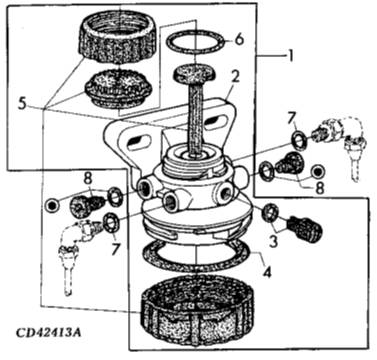

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 .................. KIT 1 X (ALSO ORDER (2) R26286 AND (2) RE62158)

2 .................. FILTER HEAD 1 X

3 .................. DRAIN PLUG 1 X ORD RE60854

4 R113565 PACKING 1 X

5 .................. RETAINER 1 X ORD RE51649

6 .................. O-RING 1 X ORD RE50752

7 R26286 O-RING 2 X

8 RE62158 PIPE PLUG 2 X 1/2"-20UNF

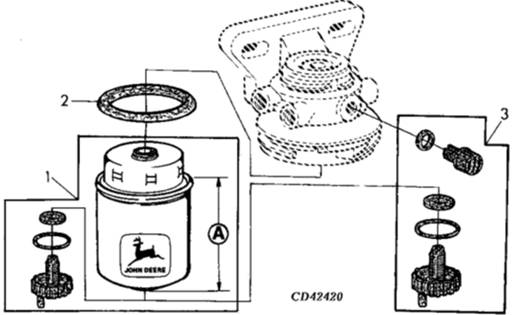

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE60021 FUEL FILTER 1 X A = 71MM, (ALSO ORDER R113565)

2 R113565 PACKING 1 X

3 RE60854 KIT 1 X

ENGINES

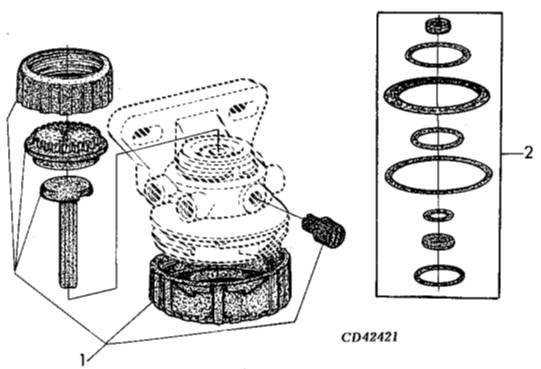

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE51649 KIT AR X INCL. INSTRUCTIONS

2 RE50752 SEAL KIT AR X

9700-

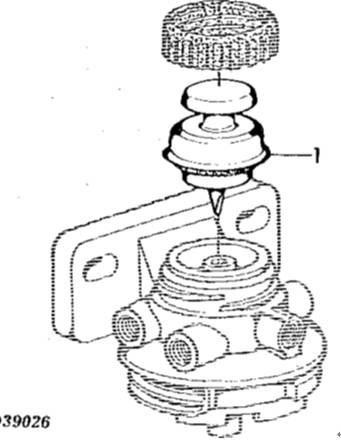

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE50467 HAND PRIMER 1 X (A)

(A) ACCESSORY

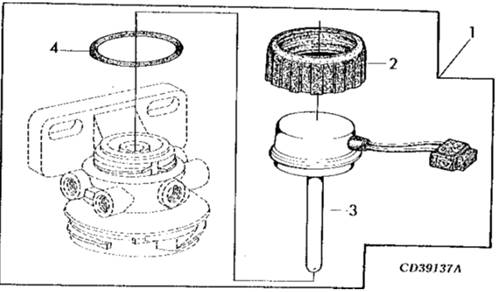

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE51648 KIT AR X (A) INCL. INSTRUCTIONS

2 .................. WING NUT 1 X ORD KIT RE51649

3 .................. HEATER 1 X (12V - 150W) ORD KIT RE51648

4 .................. O-RING 1 X ORD KIT RE50752

(A) ACCESSORY

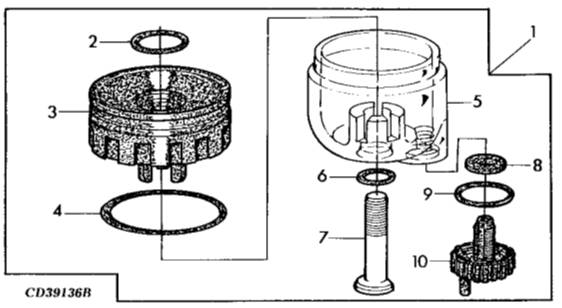

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE51650 SEDIMENT BOWL AR X (A) KIT, INCL. INSTRUCTIONS

2 .................. O-RING 1 X ORD KIT RE50752

3 .................. WING NUT 1 X ORD KIT RE51650

4 .................. O-RING 1 X ORD KIT RE50752

5 .................. SEDIMENT BOWL 1 X ORD KIT RE51650

6 .................. O-RING 1 X ORD KIT RE50752

7 .................. SCREW 1 X ORD KIT RE51650

8 .................. GASKET 1 X ORD KIT RE60854

9 .................. O-RING 1 X ORD KIT RE60854

10 .................. DRAIN PLUG 1 X ORD KIT RE60854

(A) ACCESSORY
