perkins柴油机水泵

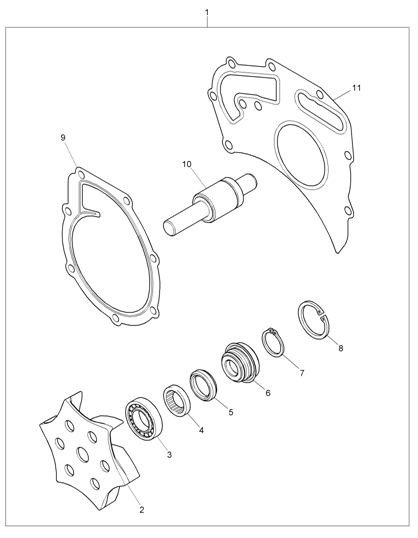

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目     零件号    数量     新零件号     描述

1 U7LW0172 1 U7LW0172 REPAIR KIT - WATER PUMP

1 u7lw0172 1 u7lw0172修理工具-水泵

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目     零件号    数量     新零件号     描述

2 1 IMPELLER

2 1叶轮

3 1 ROLLER BEARING

3辊1轴承瓦

4 1 BEARING

4 1轴承瓦

5 1 SEAL - OIL

1密封油5

6 1 SEAL

6 1密封

7 1 CIRCLIP

7 1卡簧

8 1 CIRCLIP

8 1卡簧

9 24880234 1 24880234 GASKET - WATER PUMP

24880234、1、24880234垫片-水泵

10 1 DRIVE SHAFT

1传动轴10

11 3682A011 1 3682A011 GASKET - WATER PUMP

11 3682a011 1 3682a011垫片水泵

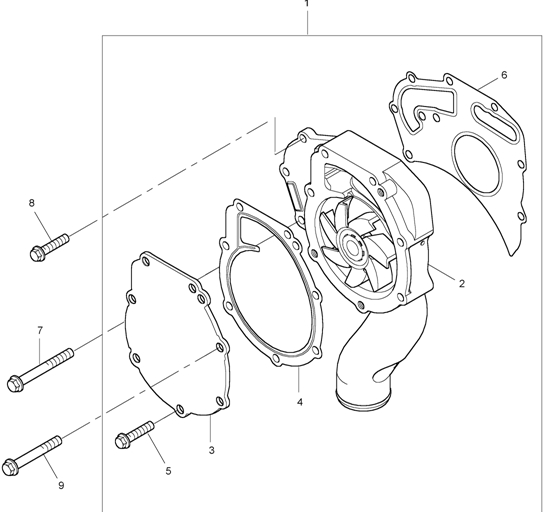

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目     零件号    数量     新零件号     描述

1 U5MW0206 1 U5MW0206 WATER PUMP KIT

1 u5mw0206 1 u5mw0206水泵套件

1 U5MW0194 1 U5MW0206 WATER PUMP KIT

1 u5mw0194 1 u5mw0206水泵套件

7 2314K164 2 2314K164 SCREW

7 2314k164 2 2314k164螺钉

8 2314H005 2 2314H005 SCREW

8 2314h005 2 2314h005螺钉

9 2314H012 5 2314H012 SCREW

9 2314h012 5 2314h012螺钉

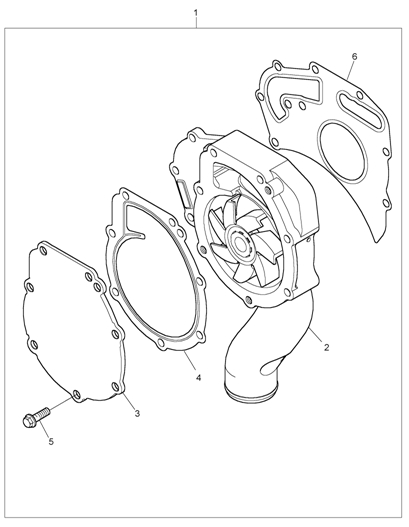

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目     零件号    数量     新零件号     描述

2 1 WATER PUMP

1水泵2

2 1 WATER PUMP

1水泵2

3 1 WATER PUMP COVER

3水泵盖1

4 24880239 1 24880239 GASKET

24880239、1、24880239垫片4

5 2314H743 3 2314H743 SCREW

5 2314h743 3 2314h743螺钉

6 3682A011 1 3682A011 GASKET - WATER PUMP

6 3682a011 1 3682a011垫片水泵

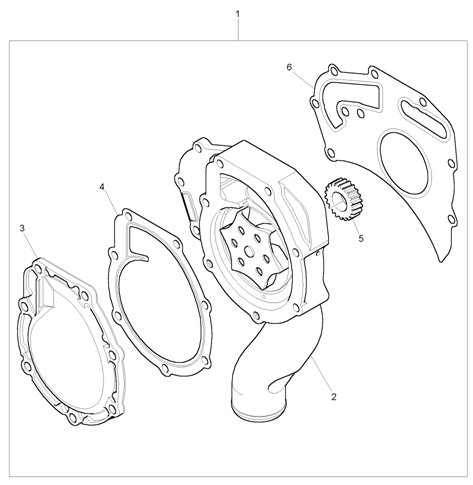

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目     零件号    数量     新零件号     描述

2 1 BODY

2 1体

3 1 COVER

3 1套

4 24880234 1 24880234 GASKET - WATER PUMP

24880234、1、24880234垫片-水泵

5 24880232 1 U5MW0206 WATER PUMP GEAR

5 24880232 1 u5mw0206水泵齿轮

6 3682A011 1 3682A011 GASKET - WATER PUMP

6 3682a011 1 3682a011垫片水泵
