珀金斯发动机4缸机零配件图册
2017/5/16 21:52:08
| 一、气缸体 CylinderBlock | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | TZZ50265 | 机体 | 件 | 1 | 1 | A | 总成 | CYL.BLOCKASSY. |
| 2 | T3711H121 | 机体 | 件 | 1 | 1 | A | CYLINDERBLOCK | |
| 3 | T3135X062 | 缸套 | 件 | 4 | 4 | B | LINER | |
| 4 | T32166329 | 大瓦螺栓 | 件 | 10 | 10 | B | BOLT | |
| 5 | T3271H004A | 惰轮轴 | 件 | 1 | 1 | B | IDLERSHAFT8790 | |
| 6 | T3774A004 | 挺杆腔堵 | 件 | 4 | 4 | B | PLUG | |
| 7 | T33142111 | 挺杆腔堵 | 件 | 10 | 10 | B | PLUG | |
| 8 | T32418122 | 定位套 | 件 | 6 | 6 | B | THIMBLE | |
| 9 | T0650710 | 碗堵 | 件 | 6 | 6 | B | PLUG | |
| 10 | T32418124 | 碗堵 | 件 | 1 | 1 | B | PLUG | |
| 11 | TDU5ND002 | 瓦盖 | 件 | 1 | 1 | B | BEARINGCAPASSY. | |
| 16 | T31134165 | 衬套 | 件 | 1 | 1 | B | BUSH | |
| 17 | T32416119 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 18 | T32417134 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 19 | T64404002 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 20 | T32168212 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 21 | T72101002 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 22 | T0650586 | 堵 | 件 | 2 | 2 | B | PLUG | |
| 23 | T4138A017 | 冷却喷嘴阀 | 件 | 4 | 4 | B | JETASSY. | |
| 24 | T3861A027 | 冷却喷嘴 | 件 | 4 | 4 | B | JET | |
| 25 | T2418F701 | 后油封 | 件 | 1 | 1 | C | REAROILSEAL | |
| 26 | T3211C002 | 螺栓 | 件 | 6 | 6 | B | SCREW | |
| 27 | T3211C002 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 二、正时齿轮及凸轮轴 TimingGear&Camshaft | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T0500012 | 键 | 件 | 1 | 1 | B | KEY | |
| 2 | T3117C061 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 3 | T33426161A | 轮毂 | 件 | 1 | 1 | B | HUB | |
| 4 | T4111A013 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 7 | T3241H009 | 固定板 | 件 | 1 | 1 | B | PLATE | |
| 8 | T2314J010 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 9 | T4111A021 | 齿轮 | 件 | 1 | 1 | B | LUBOILIDLERGEARASSY | |
| 12 | T33123125 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 13 | T2722A206 | 卡簧 | 件 | 1 | 1 | B | CIRCLIP | |
| 14 | T31415363 | 凸轮轴 | 件 | 1 | 1 | B | CAMSHAFT | |
| 15 | T33153121 | 板 | 件 | 1 | 1 | B | PLATE | |
| 16 | T2116053 | 销子 | 件 | 1 | 1 | B | DOWEL | |
| 17 | T0500012 | 键 | 件 | 1 | 1 | B | KEY | |
| 18 | T3117L023 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 19 | T2314J606 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 20 | T3321A003 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 21 | T2314F003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 22 | T3681P009 | 垫 | 件 | 1 | 1 | B | JOINT | |
| 23 | T3716C127E | 正时齿轮室 | 件 | 1 | 1 | A | TIMINGCASE | |
| 24 | T2314H003 | 螺栓 | 件 | 8 | 8 | B | SCREW | |
| 25 | T2314H034 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 26 | T3681P029 | 垫 | 件 | 1 | 1 | B | JOINT | |
| 27 | T3716M073 | 前盖 | 件 | 1 | 1 | B | FRONTCOVER | |
| 28 | T2418F436 | 油封 | 件 | 1 | 1 | B | SEAL | |
| 29 | T2314H005 | 螺栓 | 件 | 5 | 2 | B | SCREW | |
| 30 | T2314H004 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 31 | T2314H034 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 32 | T2314H034 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 33 | T2314H013 | 螺栓 | 件 | 6 | 6 | B | SCREW | |
| 34 | T3753R211 | 检查盖 | 件 | 1 | 1 | B | INSPECTIONCOVER | |
| 35 | T3682H003A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 36 | T2314F036 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 37 | T3781N042 | 减震垫 | 件 | 1 | 1 | B | DAMPINGJOINT | |
| 38 | T3781N043 | 隔音板 | 件 | 1 | 1 | B | ACOUSTICBOARD | |
| 三、曲轴活塞及连杆 CrankshaftPistons&ConnectingRods | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T31315681 | 曲轴 | 件 | 1 | 1 | A | CRANKSHAFT | |
| 2 | T81558 | 主轴瓦 | 件 | 1 | 1 | B | BEARINGASSY. | |
| 3 | T31126391 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 4 | T31126381 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 5 | T31126391 | 轴瓦 | 件 | 2 | 2 | B | BEARING | |
| 6 | T31126381 | 轴瓦 | 件 | 2 | 2 | B | BEARING | |
| 7 | T31126371 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 8 | T31126361 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 9 | T31126391 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 10 | T31126381 | 轴瓦 | 件 | 1 | 1 | B | BEARING | |
| 11 | TZZ900011 | 止推片总成 | 件 | 1 | 1 | B | THRUSTWASHERASSY. | |
| 12 | T3135J181ETC | 活塞 | 件 | 4 | 4 | B | PISTON | |
| 13 | T4181A026 | 活塞环 | 件 | 4 | 4 | B | PISTONRING | |
| 14 | T3136J051 | 气环 | 件 | 1 | 1 | B | AIRRING | |
| 15 | T3136X021 | 气环 | 件 | 1 | 1 | B | AIRRING | |
16 |
T3137N021 | 油环 | 件 | 1 | 1 | B | OILRING | |
| 17 | T3313T005 | 活塞销 | 件 | 4 | 4 | B | PIN | |
| 18 | T2721332 | 卡簧 | 件 | 8 | 8 | B | CIRCLIP | |
| 19 | T4115C211 | 连杆总成 | 件 | 4 | 4 | B | CONNECTINGASSEMBLY | |
| 20 | T32186142 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 21 | T3112E005 | 小头衬套 | 件 | 1 | 1 | B | SMALLENDBUSH | |
| 22 | T31132011 | 连杆瓦 | 件 | 8 | 8 | B | CONRODBEARING | |
| 四、气缸盖 CylinderHead | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3681E033 | 缸盖垫 | 件 | 1 | 1 | B | GASKET | |
| 2 | TZZ80221 | 缸盖 | 件 | 1 | 1 | B | 总成 | CYLINDERHEADASSY |
| 3 | T3712H074 | 缸盖 | 件 | 1 | 1 | B | CYLINDERHEAD | |
| 4 | T3324E003 | 进气阀座 | 件 | 4 | 4 | B | INLETVALVESEAT | |
| 5 | T3314A122 | 排气阀座 | 件 | 4 | 4 | B | OUTLETVALVESEAT | |
| 6 | T0650586 | 堵 | 件 | 4 | 4 | B | PLUG | |
| 7 | T0650203 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 8 | T2431154 | 堵 | 件 | 2 | 2 | B | PLUG | |
| 9 | T2411157 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 10 | T0650710 | 碗堵 | 件 | 1 | 1 | B | PLUG | |
| 11 | T32417121 | 出沙孔堵 | 件 | 4 | 4 | B | PLUG | |
| 12 | T3343F041 | 进气门导管 | 件 | 4 | 4 | B | INLETVALVEGUIDE | |
| 13 | T3343J021 | 排气门导管 | 件 | 4 | 4 | B | OUTLETVALVEGUIDE | |
| 14 | T2114A046 | 定位销 | 件 | 2 | 2 | B | DOWEL | |
| 19 | T33817117 | 密封圈 | 件 | 4 | 4 | B | SEAL | |
| 20 | T31745122 | 进气门外弹簧 | 件 | 4 | 4 | B | SPRING | |
| 21 | T31744133 | 进气门内弹簧 | 件 | 4 | 4 | B | SPRING | |
| 22 | T33415118 | 垫圈 | 件 | 4 | 4 | B | WASHER | |
| 23 | T33424107 | 进气门阀盖 | 件 | 4 | 4 | B | VALVECAP | |
| 24 | T33173108 | 进气门锁夹 | 件 | 8 | 8 | B | COTTER | |
| 25 | T3142A051 | 排气门 | 件 | 4 | 4 | B | EXHAUSTVALVE | |
| 26 | T33817117 | 密封圈 | 件 | 4 | 4 | B | SEALWASHER | |
| 27 | T31745122 | 排气门外弹簧 | 件 | 4 | 4 | B | SPRING | |
| 28 | T31744133 | 排气门内弹簧 | 件 | 4 | 4 | B | SPRING | |
| 29 | T33415118 | 垫圈 | 件 | 4 | 4 | B | WASHER | |
| 30 | T33424107 | 排气门阀盖 | 件 | 4 | 4 | B | CAP,INLETVALVESPRING | |
| 31 | T33173108 | 排气门锁夹 | 件 | 8 | 8 | B | COTTER | |
| 15 | T32166219 | 螺栓 | 件 | 8 | 8 | B | SCREW | |
| 16 | T32166221 | 螺栓 | 件 | 12 | 12 | B | SCREW | |
| 17 | T32166222 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 32 | T74401045 | 出气硬管支架 | 件 | 1 | 1 | B | BRACKET | |
| 32 | T74401043A | 出气硬管支架 | 件 | 1 | 1 | B | BRACKET | |
| 33 | GB5783-86 | 螺栓 | 件 | 1 | 1 | B | M10X20 | SCREW |
| 五、摇臂轴 Rockershaft | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2313H331 | 丝对 | 件 | 3 | 3 | B | STUD | |
| 2 | T2318A605 | 螺母 | 件 | 3 | 3 | B | NUT | |
| 3 | T2314J607 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 4 | T3818X901 | 支架 | 件 | 4 | 4 | B | BRACKET | |
| 5 | T31411124 | 摇臂轴 | 件 | 1 | 1 | B | ROCKERSHAFT | |
| 6 | T0650507 | 堵 | 件 | 2 | 2 | B | PLUG | |
| 7 | T4115R306 | 摇臂 | 件 | 4 | 4 | B | 组件 | LEVERASSMBLE |
| 10 | T4115R305 | 摇臂 | 件 | 4 | 4 | B | 组件 | LEVERASSMBLE |
| 13 | T32114145 | 螺栓 | 件 | 8 | 8 | B | SCREW | |
| 14 | T0576052 | 螺母 | 件 | 8 | 8 | B | NUT | |
| 15 | T31744123 | 弹簧 | 件 | 2 | 2 | B | SPRING | |
| 16 | T31743108 | 弹簧 | 件 | 2 | 2 | B | SPRING | |
| 17 | T33117434 | 垫圈 | 件 | 2 | 2 | B | WASHER | |
| 18 | T0170151 | 卡簧 | 件 | 2 | 2 | B | CIRCLIP | |
| 19 | T3142U031 | 挺柱 | 件 | 8 | 8 | B | TAPPET | |
| 20 | T31434307 | 推杆 | 件 | 8 | 8 | B | PUSHROD | |
| 21 | T3775E012 | 进油接头 | 件 | 1 | 1 | B | CONNECTION | |
| 22 | T2233022 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 23 | T33811113 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 24 | T3311K015 | 垫片 | 件 | 2 | 2 | B | WASHER | |
| 六、润滑油泵 LubricatingOilPump | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 15 | T4132F056C | 机油泵 | 件 | 1 | 1 | A | OILPUMPASSY. | |
| 16 | T2314H005 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 17 | T4138A049 | 限压阀 | 件 | 1 | 1 | B | RELIEFVALVE | |
| 18 | T33137409 | 定位套 | 件 | 1 | 1 | B | THIMBLE | |
| 19 | T2314J011 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 20 | T3748C011 | 法兰 | 件 | 1 | 1 | B | FLANGE | |
| 21 | T2314H004 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 22 | T2415H201 | O型圈 | 件 | 2 | 2 | B | ORING | |
| 23 | T3343F012 | 油管 | 件 | 1 | 1 | B | PIPE | |

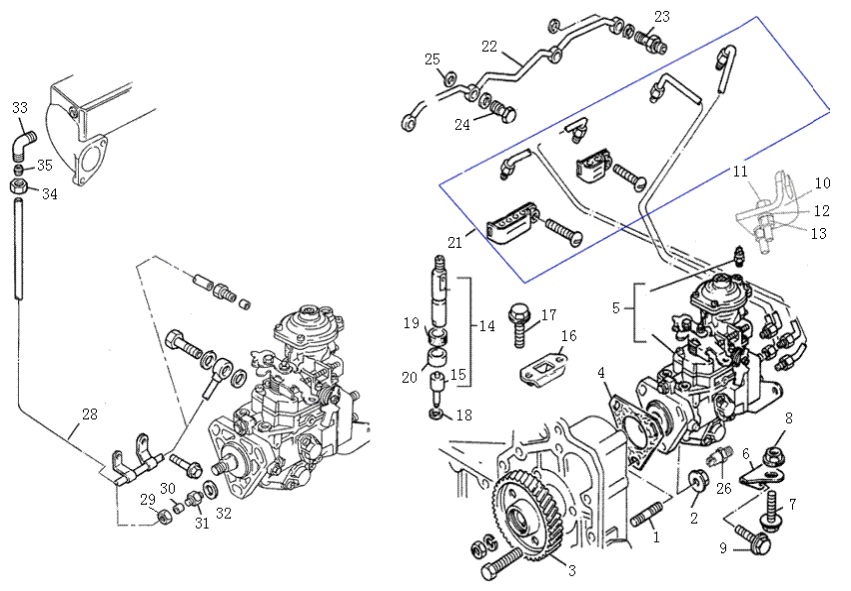

| 七、燃油喷射系统 FuelInjectionEquipment | ||||||||
 |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2313M059 | 丝对 | 件 | 3 | 3 | B | STUD | |
| 2 | T2318A603 | 螺母 | 件 | 3 | 3 | B | NUT | |
| 3 | T3117L141 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 4 | T3682A008A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 5 | T2643H076B | 喷油泵 | 件 | 1 | 1 | A | FUELPUMP | |
| 6 | T3645E008 | 支架 | 件 | 1 | 1 | B | BRACKET | |
| 7 | T2314H003 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 8 | T2318A603 | 螺母 | 件 | 1 | 1 | B | NUT | |
| 9 | T2314J002 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 10 | T73201614 | 油门线支架 | 件 | 1 | 1 | B | BRACKET | |
| 11 | GB5783-86 | 螺栓 | 件 | 2 | 2 | B | M6×25 | SCREW |
| 12 | GB93-87 | 弹簧垫圈6 | 件 | 2 | 2 | B | SPRINGWASHER | |
| 13 | GB6170-86 | 螺母M6 | 件 | 2 | 2 | B | NUT | |
| 14 | T63301004 | 喷油器总成 | 件 | 4 | 4 | B | ATOMIZERASSY. | |
| 15 | T2645F615 | 喷嘴 | 件 | 1 | 1 | B | NOZZLE | |
| 16 | T3662K002 | 压板 | 件 | 4 | 4 | B | CLAMP | |
| 17 | T2314H006 | 螺栓 | 件 | 8 | 8 | B | SCREW | |
| 18 | T0921173 | 垫圈 | 件 | 4 | 4 | B | WASHER | |
| 19 | T33813129 | 隔圈 | 件 | 4 | 4 | B | SPACER | |
| 20 | T33813131 | 防尘套 | 件 | 4 | 4 | B | SEALCOVER | |
| 21 | T73302051 | 高压油管 | 件 | 1 | B | PIPESSEMBLE | ||
| 21 | T4184E042 | 高压油管 | 件 | 1 | B | PIPESSEMBLE | ||
| 22 | T73302045 | 回油管 | 件 | 1 | B | PIPE | ||
| 22 | T3558X043 | 回油管 | 件 | 1 | B | PIPE | ||
| 23 | T3355V002 | 过油螺栓 | 件 | 1 | 1 | B | SCREW | |
| 24 | T3218R005 | 过油螺栓 | 件 | 3 | 3 | B | SCREW | |
| 25 | T2411101 | 垫圈 | 件 | 8 | 8 | B | WASHER | |
| 26 | T2848A121 | 温控开关 | 件 | 1 | 1 | B | SWITCH | |
| 28 | T4126K118B | 油管 | 件 | 1 | 1 | B | 组件 | PIPE |
| 29 | T33225412 | 螺母 | 件 | 1 | 1 | B | NUT | |
| 30 | T33811112 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 31 | T3355M004 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 32 | T0920106 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 33 | T0201047 | 弯管 | 件 | 1 | 1 | B | ELBOW | |
| 34 | T0576111 | 螺母 | 件 | 1 | 1 | B | NUT | |
| 35 | T0566002 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |

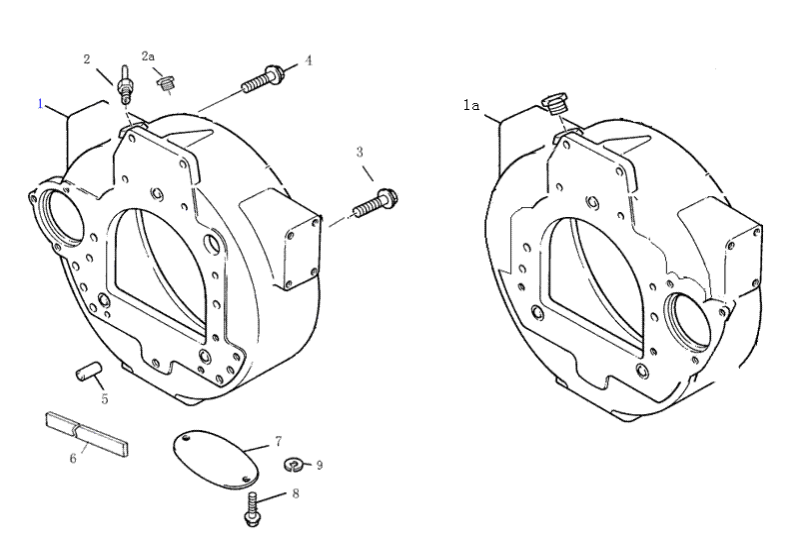

| 八、飞轮壳 FlywheelHousing | ||||||||
 |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3713K023D | 飞轮壳 | 件 | 1 | 1 | A | FLYWHEELHOUSING | |
| 2 | Q/0501-05 | 螺堵 | 件 | 1 | 1 | B | M16X1.5 | SCREWPLUG |
| 3 | T2314J204 | 螺栓 | 件 | 6 | 6 | B | SCREW | |
| 4 | T2314J603 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 5 | T0350025 | 定位销 | 件 | 2 | 2 | B | DOWEL | |
| 6 | T36843154 | 密封条 | 件 | 1 | 1 | B | SEAL | |
| 7 | T0240356 | 盖板 | 件 | 1 | 1 | B | COVERPLATE | |
| 8 | GB5783-86M6X16 | 螺栓 | 件 | 2 | 2 | B | M6X16 | SCREW |
| 9 | GB93-87D6 | 弹簧垫圈6 | 件 | 2 | 2 | B | SPRINGWASHER | |
| 九、飞轮及启动齿圈 Flywheel&StarterRing | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T63615000K1 | 飞轮部 | 件 | 1 | 1 | A | FLYWHEELASSY. | |
| T31162121B | 齿圈 | 件 | 1 | 1 | B | 126齿 | STARTINGRING | |
| 2 | T2185103 | 螺栓 | 件 | 10 | 10 | B | SCREW | |
| 3 | T33117127 | 垫圈 | 件 | 10 | 10 | B | WASHER | |
| 4 | T63601003 | 轴承 | 件 | 1 | 1 | B | 6205 | BEARING |
| 5 | T65811000 | 离合器 | 件 | 1 | 1 | B | DS330T3 | CLUTCH |
| 6 | T65803000 | 盖总成 | 件 | 1 | 1 | B | COVER | |
| 7 | T65804000 | 从动盘总成 | 件 | 1 | 1 | B | DrivenPlateAssemble | |
| 8 | T63602109 | 定位销 | 件 | 1 | 1 | B | DOWEL | |
| 9 | T63602110 | 定位销 | 件 | 1 | 1 | B | DOWEL | |
| 10 | T2314J003 | 螺栓 | 件 | 8 | 8 | B | SCREW | |
| 11 | GB93-87D10 | 垫圈10 | 件 | 8 | 8 | B | WASHER | |
| 十、起, 动电机 MotorStarter | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
1 |
T2313C078 | 双头螺栓 | 件 | 3 | 3 | B | ADJUSTINGBRACKET | |
| 2 | GB6170-86M10 | 螺母M10 | 件 | 3 | 3 | B | SCREW | |
| 3 | GB93-87D10 | 弹簧垫圈10 | 件 | 3 | 3 | B | SCREW | |
| 4 | T63701001 | 起动马达 | 件 | 1 | 1 | A | MOTORSTARTER | |
| T63701011 | 单项器 | 件 | 1 | 1 | B | |||
| T63701012 | 吸力开关 | 件 | 1 | 1 | B | |||
| TZZ90151 | 碳刷 | 件 | 1 | 1 | B | |||
| T73701021 | 轴衬组件 | 件 | 1 | 1 | B | |||
| TZZ90154 | 马达前端壳 | 件 | 1 | 1 | B | |||
| 十一、风扇驱动装置 FanDrive | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 8 | T43904000 | 驱动风扇架 | 件 | 1 | 1 | B | FANDRIVEHOUSING | |
| 9 | T2314J014 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 10 | T73902001 | 风扇皮带轮 | 件 | 1 | B | PULLEY | ||
| 10 | T64303042 | 风扇皮带轮 | 件 | 1 | B | PULLEY | ||
| 11 | T64401007 | 皮带(长) | 件 | 2 | C | 1230mm | BELT | |
| 11 | T64401011 | 皮带(长) | 件 | 2 | C | 1230mm | BELT | |
| 12 | T74401019 | 皮带 | 件 | 1 | C | BELT | ||
| 12 | T64401003 | 皮带 | 件 | 1 | C | BELT | ||
| 十二、润滑油底壳 LubricatingOilSump | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3627P024 | 桥架 | 件 | 1 | 1 | B | ||
| 2 | T2311D039 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 3 | T2413A016 | 堵 | 件 | 2 | 2 | B | PLUG | |
| 4 | T4145H061B | 油底壳 | 件 | 1 | 1 | B | 总成 | SUMPASSEMBLE |
| 5 | T32186405 | 堵 | 件 | 2 | 2 | B | PLUG | |
| 6 | T2415715 | O型圈 | 件 | 2 | 2 | B | ORING | |
| 7 | T36815736A | 垫 | 件 | 1 | B | JOINT | ||
| 7 | T36815736B | 垫 | 件 | 1 | B | JOINT | ||
| 8 | T2314H033 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 9 | T2314K164 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 10 | T2314K164 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 11 | T2314H003 | 螺栓 | 件 | 11 | 11 | B | SCREW | |
| 12 | T2314H003 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 13 | T3575A046 | 油管 | 件 | 1 | 1 | B | 总成 | SUCTIONPIPE |
| 14 | T36832137A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 15 | T2314H003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 15 | T2314H007 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 16 | T3821D012 | 支架 | 件 | 1 | 1 | B | BRACKET | |
| 17 | T2314H002 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 18 | T0920484 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 19 | T3661V002 | 板 | 件 | 1 | 1 | B | PLATE | |
| 20 | T3661C002 | 卡子 | 件 | 1 | 1 | B | CLIP | |
| 21 | T2314F002 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 22 | T2314F004 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 23 | T2318A602 | 螺母 | 件 | 2 | 2 | B | NUT | |
| 24 | T3577A125C | 油尺管 | 件 | 1 | B | 总成 | DIPSTICKASSEMBLE | |
| 24 | T73801132 | 油尺管 | 件 | 1 | B | 总成 | DIPSTICKASSEMBLE | |
| 25 | T3178C069C | 油尺 | 件 | 1 | B | DIPSTICK | ||
| 25 | T3178C125F | 油尺 | 件 | 1 | B | DIPSTICK | ||
| 26 | T33812116 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 十三、盖板 BlankingPlates | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3617A001 | 盖板 | 件 | 2 | 2 | B | COVERPLATE | |
| 2 | T3683H006A | 垫 | 件 | 2 | 2 | B | JOINT | |
| 3 | T2314H003 | 螺栓 | 件 | 4 | 4 | B | SCREW | |

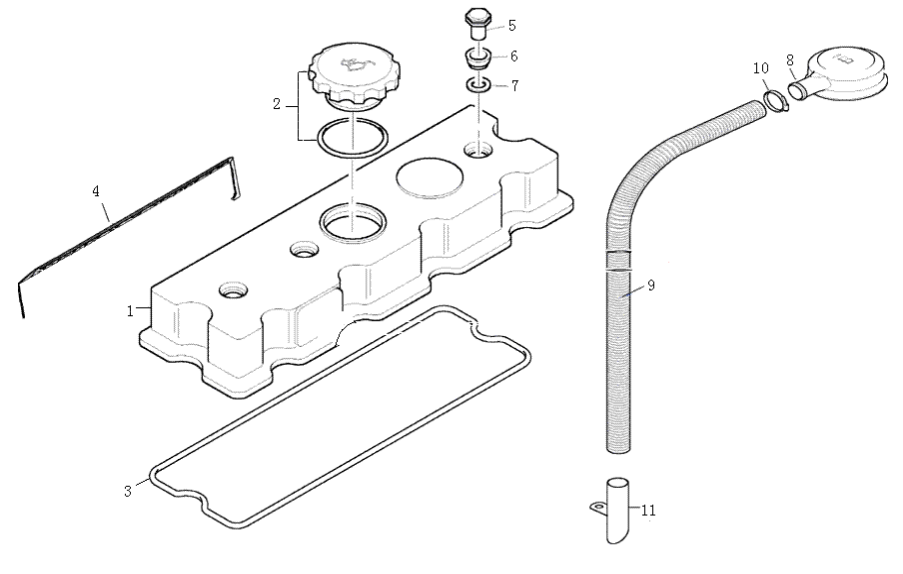

| 十四、气缸盖罩 CylinderHeadCover | ||||||||
 |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T4142X046E | 缸盖罩 | 件 | 1 | 1 | B | CLYINDERHEADCOVER | |
| 2 | T3781A003 | 加油口盖总成 | 件 | 1 | 1 | B | OILFILLERCOVERASSY. | |
| T3781J002 | O型圈 | 件 | 1 | 1 | B | ORING | ||
| 3 | T3681A021A | 缸盖罩垫 | 件 | 1 | 1 | B | JOINT | |
| 5 | T3687A507A | 防尘条 | 件 | 1 | 1 | B | SEAL | |
| 6 | T3274A003 | 螺母 | 件 | 3 | 3 | B | NUT | |
| 7 | T0920009 | 垫圈 | 件 | 3 | 3 | B | WASHER | |
| 8 | T33817135 | 密封圈 | 件 | 3 | 3 | B | SEAL | |
| 9 | T4133J001 | 呼吸器总成 | 件 | 1 | 1 | B | BREATHERPIPEASSY. | |
| 10 | T33881108E | 呼吸管 | 件 | 1 | 1 | B | BREATHERPIPE | |
| 11 | T0180066A | 喉箍 | 件 | 2 | 2 | B | ClIP | |
| 12 | T3573A006A | 支架 | 件 | 1 | 1 | B | BRACKET | |
十五、机油滤清器 LuboilFilter |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T64101001 | 机油滤清器 | 件 | 1 | 1 | C | FILTER,LUBOIL | |
| 2 | T3773P192A | 机油滤清器座 | 件 | 1 | 1 | B | FILTERHEAD | |
| 3 | T33554128A | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 4 | T3686T006A | 垫片 | 件 | 1 | 1 | B | JOINT | |
| 4 | T3686T006B | 垫片 | 件 | 1 | B | JOINT | ||
| 5 | T2314J038 | 螺栓 | 件 | 2 | 1 | B | SCREW | |
| 6 | T2314J042 | 螺栓 | 件 | 2 | B | SCREW | ||
| 十六、机油冷却器 LuboilFilter | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3686T006A | 垫 | 件 | 1 | 1 | B | WASHER | |
| 2 | T3766P092 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 3 | T2314J007 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 4 | T2314J003 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 5 | T3686A509A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 6 | T3576M005 | 油管 | 件 | 1 | 1 | B | 组件 | PIPE |
| 7 | T2314H007 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 8 | T2314H005 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 9 | T3686A509A | 垫 | 件 | 1 | 1 | B | WASHER | |
| 10 | T2314H007 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 11 | T2314H005 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 12 | T4134A022 | 油冷器 | 件 | 1 | 1 | B | 组件 | COOLER |
| 13 | T3685F004 | 垫 | 件 | 1 | 1 | B | JIONT | |
| 14 | T2486A991 | 冷却板 | 件 | 1 | 1 | B | OILCOOLER | |
| 15 | T2314H007 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 16 | T2314H008 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 17 | T3645E003 | 支架 | 件 | 1 | 1 | B | BRACKET | |
| 18 | T2314H003 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 19 | T2314J002 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 20 | T2415B135 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 21 | T2415B148 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 22 | T3383H002 | 接头 | 件 | 1 | 1 | B | CONNECTON | |
| 23 | T0180064A | 喉箍 | 件 | 2 | 2 | B | OLIVE | |
| 十七、前端驱动输入 FrontEndDriveInput | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3114V032 | 皮带轮 | 件 | 1 | 1 | B | PULLEY | |
| 2 | T3241N001 | 止推块 | 件 | 1 | 1 | B | ||
| 3 | T32186137 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 4 | T64303041 | 联接皮带轮 | 件 | 1 | 1 | B | PULLEY | |
| 5 | T61104106 | 联接螺栓 | 件 | 4 | 4 | B | SCREW | |
| 6 | GB93-87D12 | 弹簧垫圈12 | 件 | 4 | 4 | B | SPRINGWASHER | |
| 十八、水泵及节温器 WaterPump&Thermostat | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3685R005A | 垫 | 件 | 1 | 1 | B | JOINT | |
2 |
T3623K007 | 缸盖后盖板 | 件 | 1 | 1 | B | COVERPLATE | |
| 3 | T2314H002 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 4 | T2314H003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 5 | T74401042A | 支架 | 件 | 1 | B | BRACKET | ||
| 7 | T4131E018 | 水泵 | 件 | 1 | 1 | B | 组件 | WATERPUMP |
| 8 | T2538624 | 轴 | 件 | 1 | 1 | B | SHAFT | |
| 9 | T2415B155 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 10 | T3771D035 | 泵体 | 件 | 1 | 1 | B | BODY | |
| 11 | T2418M006 | 水封 | 件 | 1 | 1 | B | SEAL | |
| 12 | T2418F405 | 密封垫 | 件 | 1 | 1 | B | SEALJOINT | |
| 13 | T3746X055 | 叶轮 | 件 | 1 | 1 | B | IMPELLER | |
| 14 | T3755E001 | 盖 | 件 | 1 | 1 | B | COVER | |
| 15 | T3117A032 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 16 | T2415H494 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 17 | T2314H015 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 18 | T2314N043 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 19 | T2314H008 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 20 | T2314H006 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 21 | T74405004 | 节温器 | 件 | 1 | 1 | C | THERMOSTAT | |
| 22 | T3685F005A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 23 | T3771K121E | 节温器壳体 | 件 | 1 | 1 | B | RIND | |
| 24 | T2431154 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 25 | T2314J013 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 26 | T2314H015 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 27 | T2314H008 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 28 | T3781D041C | 过水三通 | 件 | 2 | B | CONNECTION | ||
| 28 | T3764E061 | 过水三通 | 件 | 1 | B | CONNECYION | ||
| 29 | T3683N004A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 30 | T2314H004 | 螺栓 | 件 | 2 | 2 | B | M8X25 | SCREW |
| 31 | T33854114 | 胶管 | 件 | 1 | 1 | B | ||
| 32 | T0180067A | 卡箍 | 件 | 2 | 2 | B | OLIVE | |
| 十九、水出口及入口 WaterOutlet&Inlet | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
1   |
T3776E002 | 出水口 | 件 | 1 | 1 | B | WATEROUTLET | |
| 2 | T3684A004A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 3 | T2314K161 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 4 | T64403004 | 放气接头 | 件 | 1 | 1 | B | CONNECTION | |
| 5 | T2314H008 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 二十、风扇 Fan | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
1 |
T73901005 | 吸风扇 | 件 | 1 | B | FAN | ||
1 |
T64406007 | 吸风扇 | 件 | 1 | B | FAN | ||
| 2 | T2314H014 | 螺栓M8X55 | 件 | 1 | 1 | B | SCREW | |
| 3 | T3748W223 | 隔圈 | 件 | 1 | 1 | B | EXTENSION | |
| 二十一、交流发电机及发电机 Alternator&Generator | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2314H008 | 螺栓M8X45 | 件 | 2 | B | SCREW | ||
| 2 | T64501023 | 发电机 | 件 | 1 | A | ALTERNATOR | ||
| T64503054 | 皮带轮 | 件 | 1 | B | ||||
| T64505017 | 碳刷 | 件 | 1 | B | ||||
| T64501023-1 | 调节器 | 件 | 1 | B | ||||
| 3 | T2314H017 | 螺栓M8X90 | 件 | 1 | B | SCREW | ||
| 4 | T2314J008 | 螺栓M10X50 | 件 | 1 | B | SCREW | ||
| 5 | T74502119 | 隔圈 | 件 | 1 | B | SPACER | ||
| 6 | T2131A010 | 垫圈10 | 件 | 1 | B | WASHER | ||
| 7 | T2314J606 | 螺栓M12X45 | 件 | 1 | B | SCREW | ||
| 8 | GB93-87D12 | 弹簧垫圈12 | 件 | 1 | B | WASHER | ||
| 9 | T64613002B | 调节杆 | 件 | 1 | B | BRACKET | ||
| 10 | T64503016D | 发电机支架 | 件 | 1 | B | BRACKET | ||
| 11 | GB5783-86M10 | 螺栓M10X25 | 件 | 2 | B | SCREW | ||
| 12 | GB93-87D10 | 垫圈10 | 件 | 2 | B | WASHER | ||
| 13 | GB97.1-85D10 | 平垫圈10 | 件 | 2 | B | WASHER | ||
| 14 | GB93-87D8 | 垫圈8 | 件 | 1 | B | WASHER | ||
| 15 | GB93-87D8 | 垫圈8 | 件 | 1 | B | WASHER | ||
| 16 | T2314H007 | 螺栓 | 件 | 2 | B | SCREW | ||
| 17 | GB6170-86M8 | 螺母 | 件 | 2 | B | NUT | ||
| 18 | T64505002C | 空调机支架板 | 件 | 1 | B | BRACKET | ||
| 19 | T2314H014 | 螺栓M8X75 | 件 | 2 | B | SCREW | ||
| 20 | T2314J005 | 螺栓M10X35 | 件 | 1 | B | SCREW | ||
| 21 | T2314H006 | 螺栓M8X35 | 件 | 1 | B | SCREW | ||
| 22 | T64505004D | 空调支架 | 件 | 1 | B | BRACKET | ||
| 23 | GB5783-86M10 | 螺栓M10X30 | 件 | 5 | B | SCREW | ||
| 24 | GB93-87D10 | 弹簧垫圈10 | 件 | 5 | B | WASHER | ||
| 25 | GB97.1-85D10 | 平垫圈10 | 件 | 5 | B | WASHER | ||
| 26 | T64505003C | 空调机调节板 | 件 | 1 | B | LEVER | ||
| 27 | T64504006 | 调节圈 | 件 | 2 | B | SPACER | ||
| 28 | GB5783-86M10 | 螺栓M10X30 | 件 | 3 | B | SCREW | ||
| 29 | GB97.1-85D10 | 平垫10 | 件 | 3 | B | WASHER | ||
| 30 | GB93-87D10 | 弹簧垫圈10 | 件 | 3 | B | WASHER | ||
| 31 | GB5783-86M10 | 调节螺栓 | 件 | 1 | B | SCREW | ||
| 32 | GB6170-86M10 | 螺母10 | 件 | 1 | B | NUT | ||
| 二十一 、交流发电机及发电机 Alternator&Generator | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T64501023B | 发电机 | 件 | 1 | A | GENERATOR | ||
| 2 | T2314H007 | 螺栓M8X40 | 件 | 1 | B | SCREW | ||
| 3 | T2314H008 | 螺栓M8X45 | 件 | 1 | B | SCREW | ||
| 4 | GB6170-86M8 | 螺母M8 | 件 | 2 | B | NUT | ||
| 5 | T74502127 | 发电机调节杆 | 件 | 1 | B | ADJUSTINGLEVER | ||
| 6 | GB5783-86 | 螺栓M8X35 | 件 | 1 | B | SCREW | ||
| 7 | GB97.1-85D8 | 平垫圈8 | 件 | 1 | B | WASHER | ||
| 8 | GB6170-86M8 | 螺母M8 | 件 | 1 | B | NUT | ||
| 9 | T74502126 | 发电机支架 | 件 | 1 | B | BRACKET | ||
| 10 | GB5783-86 | 螺栓M10X30 | 件 | 4 | B | SCREW | ||
| 11 | GB93-87D10 | 弹簧垫圈10 | 件 | 4 | B | SPRINGWASHER | ||
| 12 | GB97.1-85D10 | 平垫圈10 | 件 | 4 | B | WASHER | ||
| 13 | T2314H006 | 螺栓M8X35 | 件 | 1 | B | SCREW | ||
| 14 | T0920467 | 平垫圈8 | 件 | 1 | B | WASHER | ||
| 15 | GB93-87D8 | 弹簧垫圈8 | 件 | 1 | B | SPRINGWASHER | ||
| 16 | GB6170-86M8 | 螺母M8 | 件 | 1 | B | NUT | ||
| 17 | T2131467 | 隔圈 | 件 | 1 | B | SPACER | ||
| 18 | T64505002C | 空调机支架板 | 件 | 1 | B | BRACKETPLATE | ||
| 19 | T2314H014 | 螺栓M8X75 | 件 | 2 | B | SCREW | ||
| 20 | T2314J005 | 螺栓M10X35 | 件 | 1 | B | SCREW | ||
| 21 | T2314H006 | 螺栓M8X35 | 件 | 1 | B | SCREW | ||
| 22 | T74615209 | 空调机调节板 | 件 | 1 | B | ADJUSTINGPLATE | ||
| 23 | T64504006 | 调节圈 | 件 | 2 | B | ADJUSTINGRING | ||
| 24 | GB5783-86 | 螺栓M10X30 | 件 | 3 | B | SCREW | ||
| 25 | GB97.1-85D10 | 平垫圈10 | 件 | 3 | B | WASHER | ||
| 26 | GB5783-86 | 调节螺栓M10X45 | 件 | 1 | B | SCREW | ||
| 27 | GB6170-86M10 | 螺母M10 | 件 | 1 | B | NUT | ||
| 28 | T74502128 | 发电机调节杆支架 | 件 | 1 | B | ADJUSTINGBRACKET | ||
| 29 | T2314K161 | 螺栓M8X60 | 件 | 2 | B | SCREW | ||
| 30 | T2314H020 | 螺栓M8X110 | 件 | 1 | B | SCREW | ||
| 二十二、齿轮驱动辅件/传动选用 GearDriveAuxiliaryDriveOption | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3272X021 | 轮毂 | 件 | 1 | 1 | B | HUB | |
| 2 | T2415H213 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 3 | T3117C161 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 4 | T2551A289 | 轴承 | 件 | 1 | 1 | B | BEAR | |
| 5 | T3241H011 | 板 | 件 | 1 | 1 | B | PLAN | |
| 6 | T2314H002 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 7 | T3753R241 | 支架 | 件 | 1 | 1 | B | BRACKET | |
| 8 | T2311D081 | 螺栓 | 件 | 3 | 3 | B | SCREW | |
| 9 | T2311D560 | 螺栓 | 件 | 4 | 4 | B | SCREW | |
| 10 | T73209520 | 油管 | 件 | 1 | 1 | B | PIPE | |
| 11 | T0206002 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 12 | T3355M005 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 13 | T0920155 | 垫圈 | 件 | 1 | 1 | B | Washer | |
| 14 | T64600107B | 胶管 | 件 | 1 | 1 | B | PIPE | |
| 15 | T0470672 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 16 | T0180063A | 喉箍 | 件 | 2 | 2 | B | CLIP | |
| 17 | T3355A017 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 18 | T3355A017 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 19 | T0470672 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 20 | T3482V077 | 胶管 | 件 | 1 | 1 | B | PIPE | |
| 21 | T0180063A | 喉箍 | 件 | 2 | 2 | B | CLIP | |
| 22 | T2415H461 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 23 | T64600113 | 空压机 | 件 | 1 | A | AIRCOMPRESSOR | ||
| 23 | T64600110 | 空压机 | 件 | 1 | A | AIRCOMPRESSOR | ||
| TZZ90505 | 缸盖 | 件 | 1 | 1 | B | |||
| TZZ90506 | 活塞 | 件 | 1 | 1 | B | |||
| TZZ90507 | 活塞环总成 | 件 | 1 | 1 | B | |||
| TZZ90508 | 垫总成 | 件 | 1 | 1 | B | |||
| TZZ90509 | 阀片、板总成 | 件 | 1 | 1 | B | |||
| TZZ90510 | 连杆铜套 | 件 | 1 | 1 | B | |||
| TZZ90512 | 连杆瓦 | 件 | 1 | 1 | B | |||
| 24 | T3117C151 | 齿轮 | 件 | 1 | 1 | B | GEAR | |
| 25 | T3683R008 | 垫 | 件 | 1 | 1 | B | Joint | |
| 26 | T71101001 | 螺堵M10x1x6 | 件 | 1 | 1 | B | PLUG | |
| 27 | T64612103 | 空压机进气接头 | 件 | 1 | 1 | B | CONNECTION | |
| 28 | T64612104 | 接头锁母 | 件 | 1 | 1 | B | NUT | |
| 29 | T64612105 | 密封垫圈 | 件 | 1 | 1 | B | WASHER | |
| 30 | T2314J001 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 31 | T2313H321 | 丝对 | 件 | 1 | 1 | B | STUD | |
| 32 | T3245T001 | 丝对 | 件 | 1 | 1 | B | STUD | |
| 33 | T2318A605 | 螺母 | 件 | 3 | 3 | B | NUT | |
| 34 | T74605005 | 支架 | 件 | 1 | B | BRACKET | ||
| 34 | T3823A045 | 支架 | 件 | 1 | B | BRACKET | ||
| 35 | T2314H004 | 螺栓 | 件 | 2 | 2 | B | SCREW | |

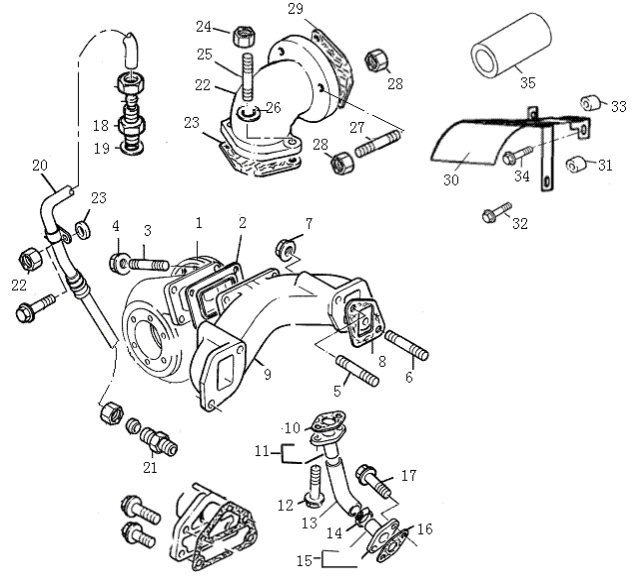

| 二十三、进、排气歧管及空气冷却器1 Manifolds&AirChargeCooler | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T3777E221A | 进气管 | 件 | 1 | B | INDUCTIONMANIFOLD | ||
| 1 | T3777E221B | 进气管 | 件 | 1 | B | INDUCTIONMANIFOLD | ||
| 2 | T3688C024 | 垫 | 件 | 1 | 1 | B | JOINT | |
| 3 | T2314J041 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 4 | T2314J034 | 螺栓 | 件 | 3 | 1 | B | SCREW | |
| 5 | T2314J036 | 螺栓 | 件 | 1 | B | SCREW | ||
| 6 | T2314J048 | 螺栓 | 件 | 1 | 1 | B | SCREW | |
| 7 | T74705204 | 进气弯管 | 件 | 1 | B | INLETELBOW | ||
| 7 | T3766T073 | 进气弯管 | 件 | 1 | B | INLETELBOW | ||
| 8 | T3684N009 | 垫 | 件 | 1 | B | JOINT | ||
| 8 | T3684N503A | 垫 | 件 | 1 | B | JOINT | ||
| 9 | T2314H004 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 10 | T2314H019 | 螺栓 | 件 | 2 | B | SCREW | ||
| 10 | T2314H017 | 螺栓 | 件 | 2 | B | SCREW | ||
| 二十三、进、排气歧管及空气冷却器2 Manifolds&AirChargeCooler | ||||||||
 |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2674A150 | 增压器 | 件 | 1 | 1 | A | TURBOCHARGER | |
| 2 | TL681VF03 | 垫 | 件 | 1 | 1 | B | JOINT | |
| 3 | TL254HF03 | 丝对 | 件 | 4 | B | STUD | ||
| 3 | T71102002 | 丝对 | 件 | 4 | B | STUD | ||
| 4 | T2318A633 | 螺母 | 件 | 4 | 4 | B | Nut | |
| 5 | T2313M387A | 丝对 | 件 | 3 | 3 | B | STUD | |
| 6 | T2313M388A | 丝对 | 件 | 1 | 1 | B | STUD | |
| 7 | T2318A634 | 螺母 | 件 | 4 | 4 | B | NUT | |
| 8 | T3681V505 | 垫 | 件 | 2 | 2 | B | JOINT | |
| 9 | T3778H201 | 排气管 | 件 | 1 | 1 | B | EXHAUSTMANIFOLD | |
| 10 | T3683D008A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 11 | T3571N007 | 油管 | 件 | 1 | 1 | B | 组件 | OILPIPE |
| 12 | T2314H003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 13 | T3383A006 | 胶管 | 件 | 1 | 1 | B | HOSE | |
| 14 | T2481877A | 喉箍 | 件 | 2 | 2 | B | HOSECLIP | |
| 15 | T3571N008 | 油管 | 件 | 1 | 1 | B | 组件 | OILPIPE |
| 16 | T36832144A | 垫 | 件 | 1 | 1 | B | JOINT | |
| 17 | T2314H003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 18 | T0201502 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 19 | TL311KF01 | 垫圈 | 件 | 1 | 1 | B | WASHER | |
| 20 | T4123T016 | 油管 | 件 | 1 | 1 | B | OILPIPE | |
| 21 | T33555138 | 接头 | 件 | 1 | 1 | B | CONNECTION | |
| 22 | T74706015 | 排气弯管 | 件 | 1 | B | EXHAUSTELBOW | ||
| 22 | T64703008A | 排气弯管 | 件 | 1 | B | EXHAUSTELBOW | ||
| 23 | T64703009 | 密封垫 | 件 | 1 | 1 | B | JOINT | |
| 24 | GB6170-86 | 螺母M10 | 件 | 3 | 3 | B | NUT | |
| 25 | T2313C077A | 丝对 | 件 | 3 | B | STUD | ||
| 26 | GB93-87D10 | 弹簧垫圈10 | 件 | 3 | 3 | B | SPRINGWASHER | |
| 27 | T2313C079 | 双头螺拴 | 件 | 3 | 6 | B | STUD | |
| 28 | GB6170-86M10 | 螺母M10 | 件 | 6 | 6 | B | NUT | 29 | T3688C018 | 密封垫 | 件 | 1 | 1 | B | JOINT |
| 30 | T64701010 | 隔热罩 | 件 | 1 | 1 | B | HEATSHIELDCover | |
| 33 | T74701011 | 隔圈 | 件 | 1 | 1 | B | SPACER | |
| 34 | GB5783-86 | 螺栓M10X85 | 件 | 1 | 1 | B | SCREW | |
| 35 | T3383E008 | 耐热耐压胶管 | 件 | 1 | 1 | B | HOSE | |
| 二十四、提升泵 LiftPump | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
5 |
T36851123 | 垫 | 件 | 1 | 1 | B | JOINT | |
| 6 | T2641A082 | 提升泵 | 件 | 1 | 1 | A | LIFTPUMP | |
| 7 | T2314H033 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 8 | GB/T848-85D8 | 弹垫8 | 件 | 2 | 2 | B | WASHER | |
| 9 | GB/T848-85D8 | 小垫圈8 | 件 | 2 | 2 | B | WASHER | |
| 10 | GB/T70-85M8X20 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 11 | T73302200 | 进油接头部总成 | 件 | 1 | B | ConnectionAssy. | ||
| 11 | T75004283 | 进油接头总成 | 件 | 1 | B | ConnectionAssy. | ||
二十五、燃油滤清器及油管 FuelFilterandPipe      |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T64103002 | 燃油滤清器 | 件 | 1 | 1 | C | FUELFILTER | |
| 2 | T2314J005 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 3 | T2318A604 | 螺母 | 件 | 2 | 2 | B | NUT | |
| 4 | T2131A010 | 垫圈 | 件 | 2 | 2 | B | WASHER | |
| 5 | T3823M003 | 支架 | 件 | 1 | B | BRACKET | ||
| 5 | T75020006 | 支架 | 件 | 1 | B | BRANCKET | ||
| 6 | GB/T5783-86M10X16 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 7 | GB/T93-87D10 | 弹垫 | 件 | 2 | 2 | B | WASHER | |
| 8 | T4124P008 | 油管 | 件 | 1 | B | OILPIPE | ||
| 8 | T73302047B | 油管 | 件 | 1 | B | OILPIPE | ||
| 8 | T73217080 | 油管 | 件 | 1 | B | OILPIPE | ||
| 9 | T73302012 | 油管 | 件 | 1 | B | OILPIPE | ||
| 9 | T73209417 | 油管 | 件 | 1 | B | OILPIPE | ||
| 10 | T4127K003 | 油管 | 件 | 1 | B | OILPIPE | ||
| 10 | T73209418 | 油管 | 件 | 1 | B | OILPIPE | ||
| 11 | T3435E001 | 油管 | 件 | 1 | B | OILPIPE | ||
| 11 | T73302050 | 油管 | 件 | 1 | B | OILPIPE | ||
| 12 | T31726601 | 接头 | 件 | 1 | 1 | B | CONECTION | |
| 13 | T0095344A | 过油螺栓 | 件 | 1 | 1 | B | OIL-PASSSCREW | |
| 14 | T73208144 | 垫圈 | 件 | 2 | 2 | B | WASHER | |
| 15 | T0576113 | 螺母 | 件 | 1 | 1 | B | NUT | |
| 16 | T0566004 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 17 | T65004200 | 回油接头管部 | 件 | 1 | B | CONNECTION | ||
| 17 | T73302300 | 回油接头管部 | 件 | 1 | B | CONNECTION | ||

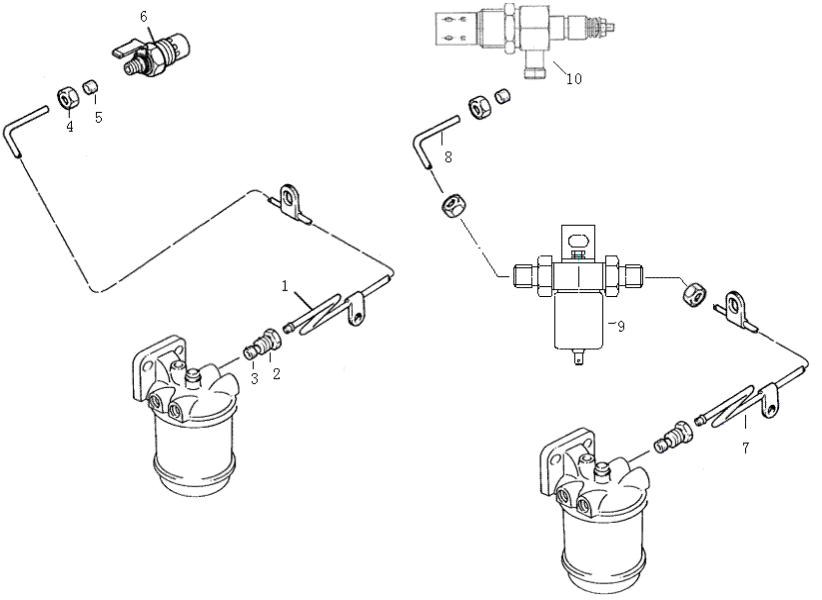

| 二十六、加热器/起动开关 Heater/StarterSwitch | ||||||||
 |
||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T73209431 | 进气加热管 | 件 | 1 | B | |||
| 2 | T33532148 | 螺母 | 件 | 1 | B | Nut | ||
| 3 | T3381A002 | 橄榄体 | 件 | 1 | B | Olive | ||
| 6 | 2666106 | 火焰预热塞 | 件 | 1 | C | |||
| 7 | T73217057 | 油管 | 件 | 1 | B | PIPE | ||
| 8 | T73217058 | 油管 | 件 | 1 | B | PIPE | ||
| 9 | T75205024 | 电磁阀组件 | 件 | 1 | C | |||
| 10 | T75205026 | 火焰预热塞 | 件 | 1 | C | |||
| 二十七、发动机提升 EngineLifting | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2314J002 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 2 | T2314J004 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 3 | T3621X007 | 吊耳 | 件 | 1 | 1 | A | LiIFTINGPLATE | |
| 4 | T2314J003 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 5 | T64703006 | 吊耳 | 件 | 1 | 1 | A | LiIFTINGPLATE | |
| 7 | GB5783-86M10X35 | 螺栓 | 件 | 2 | 2 | B | SCREW | |
| 8 | T64703007 | 隔块 | 件 | 1 | 1 | B | SPACEER | |
| 9 | GB93-87D10 | 垫圈10 | 件 | 2 | 2 | B | WASHER | |
| 二十八、支撑 Mountings | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T2313C101 | 丝对 | 件 | 8 | 8 | B | STUD | |
| 2 | T2318A605 | 螺母 | 件 | 8 | 8 | B | NUT | |
| 3 | T66001008A | 前橡胶减振块 | 件 | 2 | 2 | B | DAMPiINGBLOCK | |
| 二十九、润滑油压开关及油压表 Lub.OilPressureSwitch&Gauge | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T32161114 | 堵 | 件 | 1 | B | PLUG | ||
| 2 | T75205024 | 温度传感器 | 件 | 1 | C | SENSOR | ||
| 3 | T32161114 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 4 | T0650594 | 堵 | 件 | 1 | 1 | B | PLUG | |
| 5 | T65204004A | 机油压力传感器 | 件 | 1 | C | SENSOR | ||
| 5 | T65202004A | 机油压力传感器 | 件 | 1 | C | SENSOR | ||
| 三十、温度表及传感器 TemperatureGauge&Sender | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T75201001/A | 水温传感器 | 件 | 1 | C | SENSOR | ||
1 |
T65202005A | 水温传感器 | 件 | 1 | C | SENSOR | ||
| 2 | T65201005 | 水温传感器垫片 | 件 | 1 | 1 | B | WASHER | |
| 三十一、燃油粗滤器 FuelFilter | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | T64101002 | 燃油粗滤器 | 件 | 1 | 1 | C | FUELFILTER | |
| 2 | T0650204 | 螺堵 | 件 | 2 | 2 | B | PLUG | |
| 3 | T73274309A | 密封垫圈 | 件 | 2 | 2 | B | SEALWASHER | |
| 4 | T65003201 | 接头螺母 | 件 | 2 | 2 | B | CONNECTIONNUT | |
| 5 | T73274309A | 密封垫圈 | 件 | 2 | 2 | B | SEALWASHER | |
| 三十二、垫及垫片（顶部维修组件） Joints&Gaskers-TopServiceKit | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | TU5LT0178 | 顶部垫片 | 件 | 1 | 1 | B | Joint-TopKit | |
| 2 | T3681E033D | 缸盖垫 | 件 | 1 | 1 | B | Gasket | |
| 3 | T3681A021A | 缸盖罩垫 | 件 | 1 | 1 | B | Cyl.HeadCoverJoint | |
| 4 | T3685R005A | 气缸盖后盖板垫 | 件 | 1 | 1 | B | Cyl.HeadRearCoverPlate | |
| 5 | T3685F005A | 节温器壳体垫 | 件 | 1 | 1 | B | RindJoint | |
| 6 | TL681VF03 | 增压器-排气管 | 件 | 1 | 1 | B | TurbochargerJoint | |
| 7 | T3681V505 | 排气歧管垫 | 件 | 2 | 2 | B | ExhaustmanifoldJoint | |
| 8 | T64703009 | 排气弯管-增压器 | 件 | 1 | 1 | B | ExhaustelbowJoint | |
| 9 | T3688C018 | 排气弯管-消音器 | 件 | 1 | 1 | B | ExhaustelbowJoint | |
| 10 | T3688C024 | 进气歧管垫 | 件 | 1 | 1 | B | InductionmanifoldJoint | |
| 11 | T3684N009 | 进气弯管垫 | 件 | 1 | 1 | B | InductionelbowJoint | |
| 12 | T3684A004A | 出水口垫 | 件 | 1 | 1 | B | WaterOutletJoint | |
| 13 | T3683D008A | 增压器回油管垫 | 件 | 1 | 1 | B | Joint | |
| 14 | T36832144A | 增压器回油管垫 | 件 | 1 | 1 | B | Joint | |
| 15 | T3683N004A | 过水三通垫 | 件 | 1 | 1 | B | Water-passconnectionjoint | |
| 三十三、垫及垫片（底部维修组件） Joints&Gaskers-BottomServiceKit | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | TU5LB0051 | 底部垫片 | 件 | 1 | 1 | B | Joint-BottomKit | |
| 2 | T36815736B | 油底壳垫 | 件 | 1 | 1 | B | SumpJoint | |
| 3 | T3681P009 | 正时齿轮时垫 | 件 | 1 | 1 | B | TimingCaseJoint | |
| 4 | T3681P029 | 前盖垫 | 件 | 1 | 1 | B | FrontCoverJoint | |
| 5 | T3682H003A | 检查盖垫 | 件 | 1 | 1 | B | InspectionCoverJoint | |
| 6 | T3686T006A | 机油滤座垫 | 件 | 1 | 1 | B | Head,Lub.oilfilterJoint | |
| 7 | T3682A008A | 燃油泵垫 | 件 | 1 | 1 | B | FuelPumpJoint | |
| 8 | T36851123 | 输油泵垫 | 件 | 1 | 1 | B | LiftPumpJoint | |
| 9 | T3686A509A | 机油管垫 | 件 | 1 | 1 | B | Lub.OilPipeJoint | |
| 10 | T36832137A | 吸油管垫 | 件 | 1 | 1 | B | SuctionPipeFlangeJoint | |
| 三十四、密封件总成 SealAssembly | ||||||||
| 序号 | 图号 | 名称 | 单位 | 机型及用量 | 易损C 常用B 非常用A | 备注 | Part Name | |
| P135Ti | ||||||||
| A02 | A07 | |||||||
| 1106910000008 | 1106910000009 | |||||||
| 1 | TU5LM0010 | 密封件总成 | 件 | 1 | 1 | B | ||
| 2 | T33811112 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 3 | T33811113 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 4 | T33811114 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 5 | T33811115 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 6 | T0566002 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 7 | T0566004 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 8 | T33812116 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 9 | T3381A002 | 橄榄体 | 件 | 1 | 1 | B | OLIVE | |
| 10 | T2415H494 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 11 | T2415H213 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 12 | T2415H461 | O型圈 | 件 | 1 | 1 | B | ORING | |
| 13 | T33817117 | 气门油封 | 件 | 1 | 1 | B | SEAL | |
| 14 | T0921173 | 喷油嘴垫 | 件 | 1 | 1 | B | WASHER | |
免费热线
400-100-8969 15088860848
400-100-8969 15088860848
机组销售
0574-26871589 15267810868
0574-26871589 15267810868
配件销售
0574-26886646 15706865167
0574-26886646 15706865167
维修热线
0574-26871569 18658287286
0574-26871569 18658287286
手机端
微信公众号
X
Deutsch
Espaol
Franais
Italiano
Português
日本
韩国
阿拉伯
български
hrvatski
esky
Dansk
Nederlands
suomi
Ελληνικ
印度
norsk
Polski
Roman
русский
Svenska
中文(简)
