2806

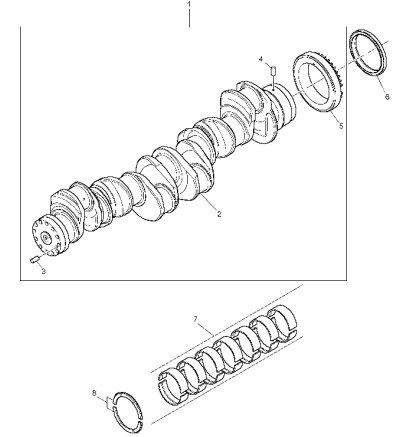

Perkins珀金斯威尔信奥林匹亚柴油发电机配件曲轴总成t401471

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 T401471 1 T401471 CRANKSHAFT ASSEMBLY

1 t401471 1 t401471曲轴总成

1 CH11521 1 T401471 CRANKSHAFT ASSEMBLY

1 ch11521 1 t401471曲轴总成

6 CH11379 1 CH11379 SEAL - FRONT END OIL

6 ch11379 1 ch11379前端油封

7 KRP3122 1 KRP3122 MAIN BEARING KIT

7 krp3122 1 krp3122主轴承盒

7 KRP3118 1 KRP3122 MAIN BEARING KIT

7 krp3118 1 krp3122主轴承盒

(7) KRP3116/025 1 KRP3116/025 MAIN BEARING KIT - U/S

（7）025 / 1 / 025 krp3116 krp3116主轴承盒U / S

(7) KRP3116/050 1 KRP3116/050 MAIN BEARING KIT - U/S

（7）050 / 1 / 050 krp3116 krp3116主轴承盒U / S

(7) KRP3117/025 1 KRP3117/025 MAIN BEARING KIT - U/S

（7）025 / 1 / 025 krp3117 krp3117主轴承盒U / S

(7) KRP3117/050 1 KRP3117/050 MAIN BEARING KIT - U/S

（7）050 / 1 / 050 krp3117 krp3117主轴承盒U / S

(7) CV11001 1 CV11001 MAIN SHELL BEARING (-)0.63MM

（7）cv11001 1 cv11001主轴承壳（-）0.63mm

(7) CV11002 1 CV11002 MAIN SHELL BEARING (-)0.127MM

（7）cv11002 1 cv11002主轴承壳（-）0.127mm

(7) CV11003 1 CV11003 MAIN SHELL BEARING (+)0.63MM

（7）cv11003 1 cv11003主轴承壳（+）0.63mm

(7) CV11004 1 CV11004 MAIN SHELL BEARING (+-)0.63MM

（7）cv11004 1 cv11004主轴承壳（+）0.63mm

8 KRP3206 1 KRP3206 THRUST WASHER KIT

8 krp3206 1 krp3206推力垫圈套件

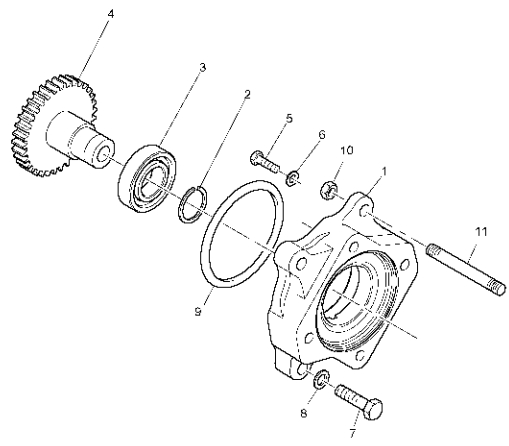

帕金斯发动机六缸配件喷油泵齿轮ch10592

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

CH10567 1 CH10567 BOLT

ch10567 1 ch10567螺栓

1 CH10594 1 CH10594 ADAPTOR

1 ch10594 1 ch10594适配器

2 CH10581 1 CH10581 SNAP RING

2 ch10581 1 ch10581卡环

3 CH10004 2 CH10004 BALL BEARING

3 ch10004 2 ch10004滚珠轴承

4 CH10592 1 CH10592 FUEL INJECTION PUMP GEAR

4 ch10592 1 ch10592喷油泵齿轮

5 CH10583 3 CH10583 BOLT

5 ch10583 3 ch10583螺栓

5 CH10541 4 CH10255 WASHER

5 ch10541 4 ch10255垫圈

6 CH10593 3 CH10593 WASHER

6 ch10593 3 ch10593垫圈

7 CH10550 3 CH10550 BOLT

7 ch10550 3 ch10550螺栓

8 CH10255 4 CH10255 WASHER

8 ch10255 4 ch10255垫圈

9 CH10590 1 CH10590 SEAL - O RING

9 ch10590 1 ch10590密封O形环

10 CH10798 1 CH10798 NUT

10 ch10798 1 ch10798螺母

11 CH12764 1 CH12764 STUD

11 ch12764 1 ch12764螺柱

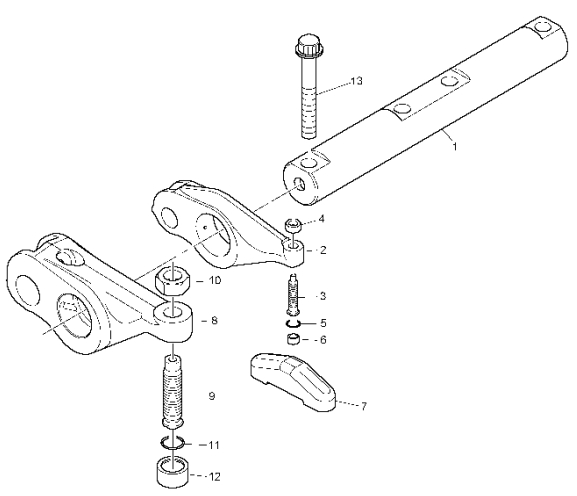

帕金斯2806 ch12695摇臂轴  卡特CAT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH12695 3 CH12695 ROCKER SHAFT

1 ch12695 3 ch12695摇臂轴

1 CH10685 3 CH12695 ROCKER SHAFT

1 ch10685 3 ch12695摇臂轴

2 T400223 12 T400223 ROCKER ARM ASSEMBLY

2 t400223 12 t400223摇臂总成

2 CH11165 12 T400223 ROCKER ARM ASSEMBLY

2 ch11165 12 t400223摇臂总成

3 CH12701 12 CH12701 SCREW

3 ch12701 12 ch12701螺钉

3 CH11162 12 Check History SCREW

3 ch11162 12检查历史螺杆

3 CH11916 12 Check History SCREW

3 ch11916 12检查历史螺杆

4 T400403 12 T400403 NUT

4 t400403 12 t400403螺母

4 CH10688 12 T400403 NUT

4 ch10688 12 t400403螺母

4 CH12697 12 T400403 NUT

4 ch12697 12 t400403螺母

5 CH10229 12 CH10229 SEAL - O RING

5 ch10229 12 ch10229密封O形环

6 CH12702 12 CH12702 PIVOT

6 ch12702 12 ch12702枢轴

6 CH10689 12 CH12702 BUTTON

6 ch10689 12 ch12702按钮

6 CH12510 12 CH12702 PIVOT

6 ch12510 12 ch12702枢轴

7 CH12831 12 CH12831 BRIDGE PIECE

7 ch12831 12 ch12831过桥

7 CH10680 12 CH12831 BRIDGE

7 ch10680 12 ch12831桥

8 T400224 6 T400224 ROCKER ARM ASSEMBLY

8 t400224 6 t400224摇臂总成

8 CH11161 6 T400224 ROCKER ARM ASSEMBLY

8 ch11161 6 t400224摇臂总成

8 CH12698 6 T400224 ROCKER ARM ASSEMBLY

8 ch12698 6 t400224摇臂总成

9 CH11076 6 CH11076 SCREW

9 ch11076 6 ch11076螺钉

10 CH11077 6 CH11077 NUT

10 ch11077 6 ch11077螺母

11 CH11079 6 CH11079 SEAL - O RING

11 ch11079 6 ch11079密封O形环

12 CH11078 6 CH11078 BUTTON

12 ch11078 6 ch11078按钮

13 CH10566 4 CH10566 BOLT

13 ch10566 4 ch10566螺栓

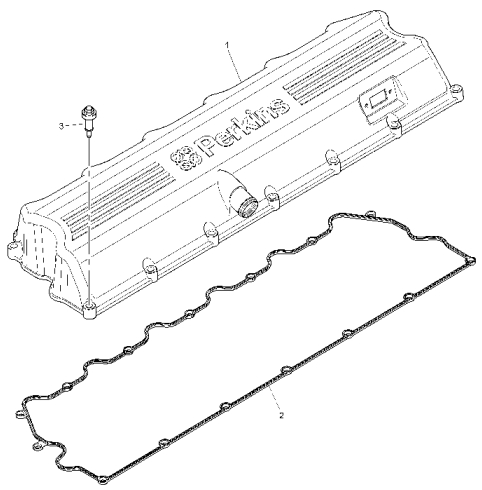

珀金斯2806摇臂室盖ch11353约翰迪尔强鹿

项目  数量   零件号    描述

1 ch11453 1 ch11512顶盖总成

2 ch11353 1 ch11353密封摇臂箱盖

3 ch10955 14 ch10955扣件

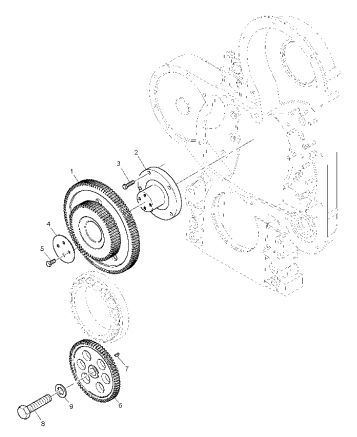

珀金斯ch10622油泵齿轮 强鹿 大宇 沃尔沃 卡特多少钱

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11526 1 CH11526 IDLER GEAR

1 ch11526 1 ch11526惰齿轮

1 CH10963 1 CH10963 IDLER GEAR

1 ch10963 1 ch10963惰齿轮

2 CH10876 1 CH10876 STUB

2 ch10876 1 ch10876存根

3 CH10611 5 CH10611 BOLT

3 ch10611 5 ch10611螺栓

4 CH10619 1 CH10619 THRUST PLATE

4 ch10619 1 ch10619推力板

5 CH10621 4 CH10621 BOLT

5 ch10621 4 ch10621螺栓

6 CH10622 1 CH10622 OIL PUMP GEAR

6 ch10622 1 ch10622油泵齿轮

7 CH10005 1 CH10005 WOODRUFF KEY

7 ch10005 1 ch10005半圆键

8 CH10609 1 CH11586 BOLT

8 ch10609 1 ch11586螺栓

9 CH10610 1 CH10610 WASHER

9 ch10610 1 ch10610垫圈

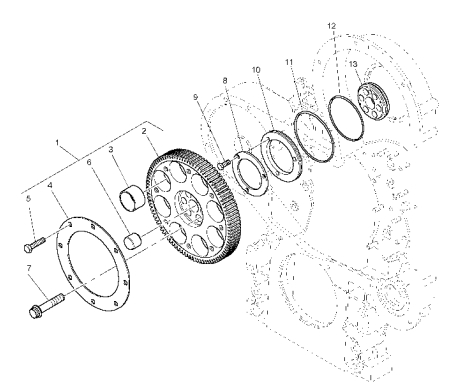

珀金斯Perkins  t400235凸轮轴齿轮 卡特彼勒CAT 康明斯 沃尔沃 强鹿价格

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 T400235 1 T400235 CAMSHAFT GEAR

1 t400235 1 t400235凸轮轴齿轮

1 CH10910 1 T400235 CAMSHAFT GEAR

1 ch10910 1 t400235凸轮轴齿轮

7 CH10616 6 CH10616 BOLT

7 ch10616 6 ch10616螺栓

8 CH10617 1 CH10617 THRUST PLATE

8 ch10617 1 ch10617推力板

9 CH10618 3 CH10618 BOLT

9 ch10618 3 ch10618螺栓

10 CH10625 1 CH10625 GASKET

10 ch10625 1 ch10625垫片

11 CH10620 1 CH10620 SEAL - O RING

11 ch10620 1 ch10620密封O形环

12 CH10612 1 CH10612 SEAL - O RING

12 ch10612 1 ch10612密封O形环

13 CH10627 1 CH10627 ADAPTOR

13 ch10627 1 ch10627适配器

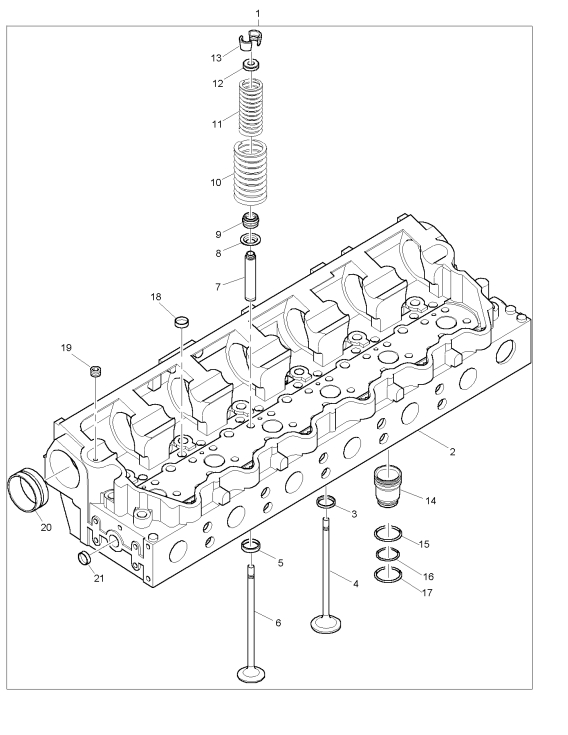

珀金斯ch11399缸盖缸头组件卡特 沃尔沃

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY

1 ch11399 1 ch11399缸头组件

1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY

1 ch11399 1 ch11399缸头组件

1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY

1 ch11399 1 ch11399缸头组件

(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH

（1）R / ch11399 1 R / ch11399缸盖包交换

(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH

（1）R / ch11399 1 R / ch11399缸盖包交换

(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH

（1）R / ch11399 1 R / ch11399缸盖包交换

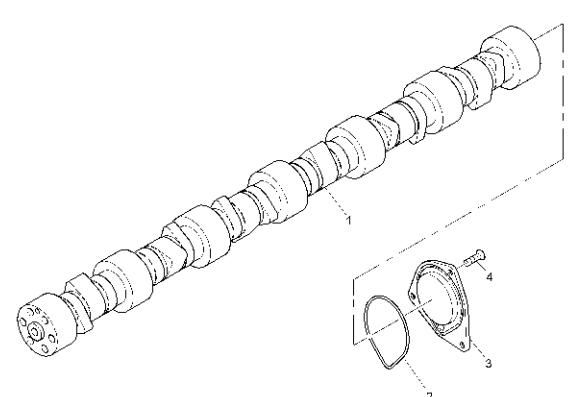

帕金斯柴油机凸轮轴 ch11520 CAT 沃尔沃

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11520 1 CH11520 CAMSHAFT

1 ch11520 1 ch11520凸轮轴

2 CH10587 1 CH10587 SEAL - O RING

2 ch10587 1 ch10587密封O形环

3 CH10588 1 CH10588 END COVER

3 ch10588 1 ch10588端盖

4 CH10589 3 CH10589 SCREW METRIC

4 ch10589 3 ch10589螺纹公制

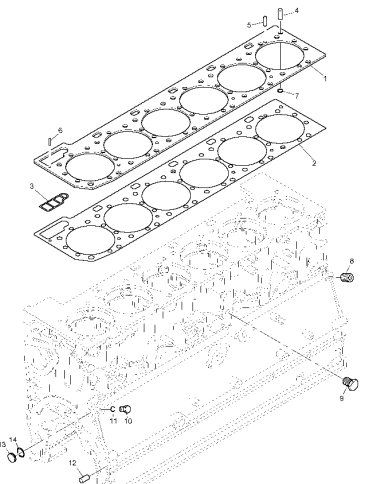

帕金斯2806威尔信气缸头垫片CH10657

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

CH10657 2 CH10657 SEAL - O RING

ch10657 2 ch10657密封O形环

CH10663 1 CH10663 PLUG

ch10663 1 ch10663插头

1 CH10662 1 CH10662 SPACER

1 ch10662 1 ch10662间隔

1 CH11398 1 CH11398 GASKET

1 ch11398 1 ch11398垫片

2 1 GASKET

2 1垫片

3 1 SEAL

3 1密封

4 CH10661 1 CH10661 DOWEL

4 ch10661 1 ch10661销

5 CH10656 1 CH10656 DOWEL

5 ch10656 1 ch10656销

6 CH10659 1 CH10659 DOWEL

6 ch10659 1 ch10659销

7 CH10660 1 CH10660 SEAL - O RING

7 ch10660 1 ch10660密封O形环

8 CH10221 5 CH10221 PLUG

8 ch10221 5 ch10221插头

9 CH10568 2 CH11963 PLUG

9 ch10568 2 ch11963插头

10 CH10664 1 CH10664 PLUG

10 ch10664 1 ch10664插头

11 CH10667 1 CH10667 SEAL - O RING

11 ch10667 1 ch10667密封O形环

12 CH10658 2 CH10658 DOWEL

12 ch10658 2 ch10658销

13 T400206 2 T400206 PLUG

13 t400206 2 t400206插头

13 CH10666 2 CH10666 PLUG

13 ch10666 2 ch10666插头

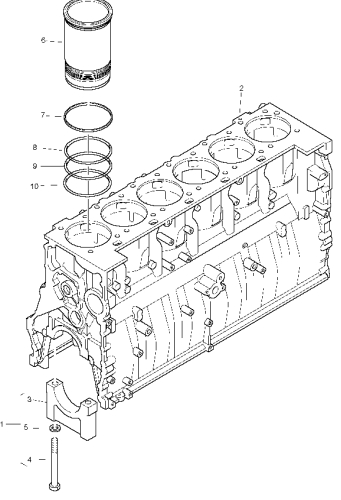

珀金斯发动机缸体 t400909 沃尔沃遍达哪里有

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 T400909 1 T400909 CRANKCASE

1 t400909 1 t400909曲轴箱

6 CH12742 6 CH12742 LINER - PRESS FIT

6 ch12742 6 ch12742衬套压装

7 CH10673 6 CH10673 BAND

7 ch10673 6 ch10673带

8 CH11654 6 CH11654 SEAL - OIL

8 ch11654 6 ch11654密封油

9 CH11656 6 CH11656 SEAL - OIL

9 ch11656 6 ch11656密封油

10 CH11656 6 CH11656 SEAL - OIL

10 ch11656 6 ch11656密封油

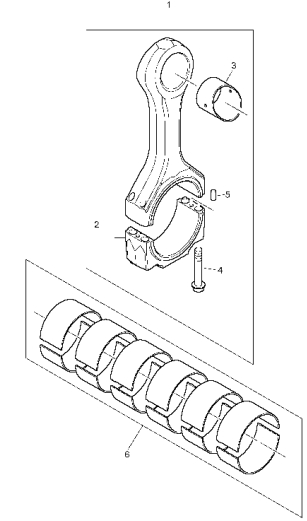

威尔逊珀金斯2806连杆总成ch11507

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11507 6 CH11507 CON ROD ASSEMBLY

1 ch11507 6 ch11507连杆总成

6 KRP3016 1 KRP3016 BIG END BEARING KIT

6 krp3016 1 krp3016大头轴承盒

(6) KRP3016/064 1 KRP3016/064 BIG END BRG KIT - U/S

（6）064 / 1 / 064 krp3016 krp3016大头BRG盒U / S

(6) KRP3016/127 1 KRP3016/127 BIG END BRG KIT - U/S

（6）127 / 1 / 127 krp3016 krp3016大头BRG盒U / S

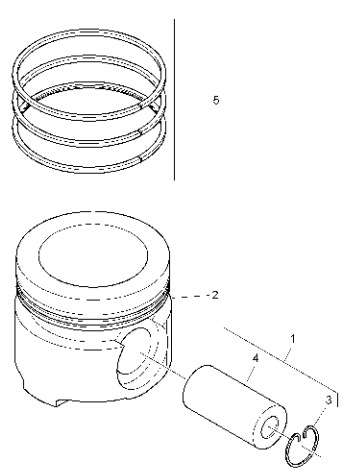

 帕金斯北京活塞环组件krp3015

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 KRP3014 1 Check History PISTON KIT

1 krp3014 1检查历史活塞套件

5 KRP3015 1 KRP3015 PISTON RING KIT

5 krp3015 1 krp3015活塞环组件

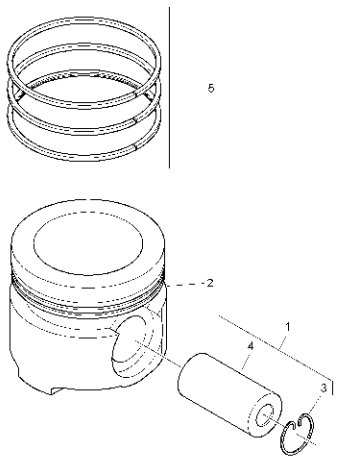

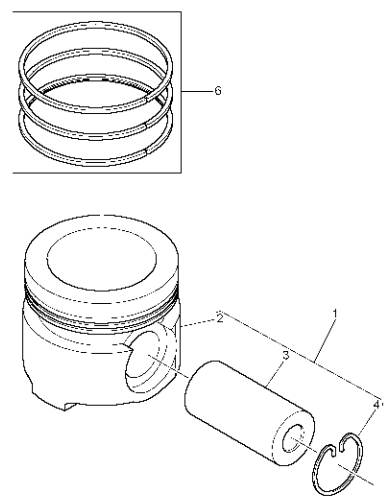

济南帕金斯发动机活塞套件krp3026

项目  数量   零件号    描述

2 1活塞

3 ch11508 1 ch11508卡簧

4 ch11503 1 ch11503活塞销

项目  数量   零件号    描述

1 krp3026 6 krp3026活塞套件

1 krp3020 6 krp3026活塞套件01 / 01 / 2007

6 krp3021 6 krp3021活塞环组件

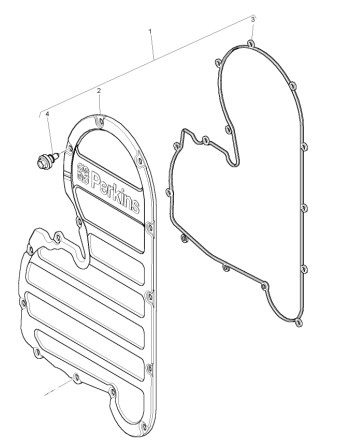

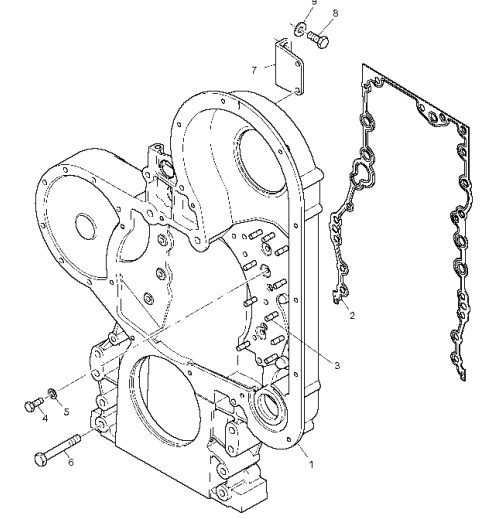

帕金斯威尔信柴油机 发电机正时垫片ch10829

项目  数量   零件号    描述

ch11352 1 ch11352密封

ch11976 14 ch10946扣件

1 ch11848 1 ch11848正时盖

1 1 timinggear盖

项目  数量   零件号    描述

1 ch11667 1 ch11667正时齿轮箱

2 ch10829 1 ch10829垫片正时

3 ch10953 10 ch10953螺柱

4 ch10815 8 ch10815螺栓

5 ch10255 8 ch10255垫圈

5 ch10541 8 ch10255垫圈

6 ch10791 9 ch10791螺栓

6 ch11476 9 ch10791螺栓

7 ch10832 1 ch10832支架

8 ch11895 2 ch11895螺栓

8 ch10537 2 ch11895螺栓

9 ch10615 2 ch10615垫圈

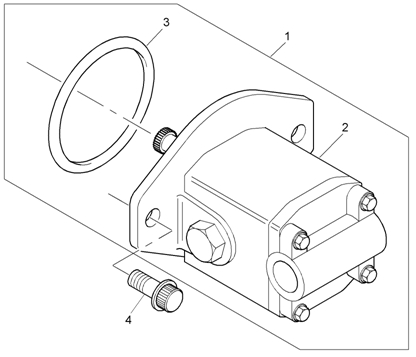

威尔信柴油发电机配件krp1721提升泵哪能买 奥林匹亚 珀金斯 卡特

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 KRP1555 1 KRP1721 LIFT PUMP

1 krp1555 1 krp1721提升泵

4 CH10582 2 CH10582 BOLT

4 ch10582 2 ch10582螺栓

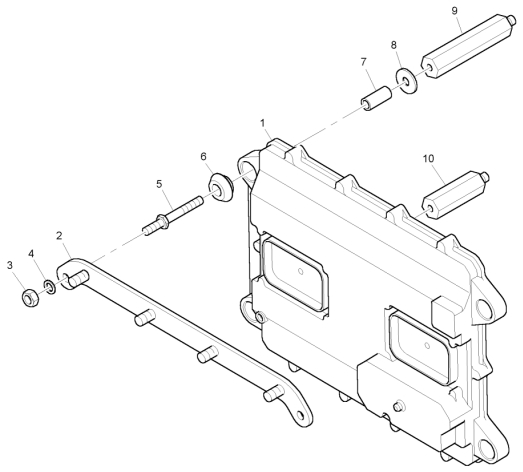

奥林匹亚发电机控制模块ECMch12800r  威尔信 Perkins

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH12800R 1 CH12800R ENGINE CONTROL MODULE

1 ch12800r 1 ch12800r发动机控制模块

1 CH11104 1 CH12800R ELECTRONIC CONTROL UNIT

1 ch11104 1 ch12800r电子控制单元

1 CH11408 1 CH12800R ELECTRONIC CONTROL UNIT

1 ch11408 1 ch12800r电子控制单元

1 CH11856 1 CH12800R ELECTRONIC CONTROL UNIT

1 ch11856 1 ch12800r电子控制单元

1 CH11968 1 CH12800R CONTROL MODULE

1 ch11968 1 ch12800r控制模块

1 P/CH11104 1 CH12800R ELECTRONIC CONTROL UNIT

1 P / ch11104 1 ch12800r电子控制单元

(1) CH11856R 1 CH12800R ELECTRONIC CONTROL UNIT

（1）ch11856r 1 ch12800r电子控制单元

(1) P/CH11104 1 CH12800R ELECTRONIC CONTROL UNIT

（1）P / ch11104 1 ch12800r电子控制单元

2 CH10422 1 CH10422 MOUNTING PLATE

2 ch10422 1 ch10422安装板

3 CH10574 2 CH10574 NUT

3 ch10574 2 ch10574螺母

4 CH10277 8 CH10277 WASHER

4 ch10277 8 ch10277垫圈

5 CH10578 4 CH10578 STUD

5 ch10578 4 ch10578螺柱

6 CH10272 8 CH10272 VIBRATION MOUNT

6 ch10272 8 ch10272振山

7 CH10108 4 CH10108 SPACER

7 ch10108 4 ch10108间隔

8 CH10279 8 CH10279 WASHER

8 ch10279 8 ch10279垫圈

9 CH10576 1 CH10576 SUPPORT

9 ch10576 1 ch10576支持

10 CH10577 1 CH10577 SUPPORT

10 ch10577 1 ch10577支持

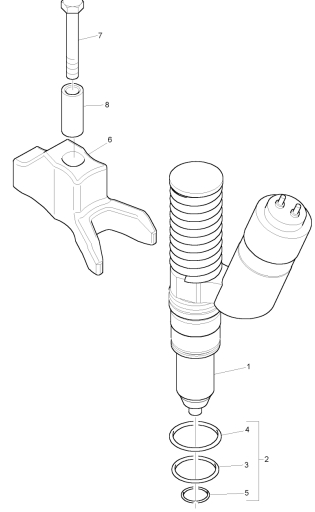

Perkins喷油器ch11659 2806柴油机配件 威尔信 奥林匹亚发电机用

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11659 6 CH11659 INJECTOR

1 ch11659 6 ch11659喷油器

1 CH11514 6 CH11659 INJECTOR UNIT

1 ch11514 6 ch11659喷射装置

6 CH10790 6 CH10790 CLAMP

6 ch10790 6 ch10790夹

7 CH10791 6 CH10791 BOLT

7 ch10791 6 ch10791螺栓

7 CH11476 6 CH10791 BOLT

7 ch11476 6 ch10791螺栓

8 CH10792 6 CH10792 SPACER

8 ch10792 6 ch10792间隔

8 CH11477 6 CH10792 SPACER

8 ch11477 6 ch10792间隔

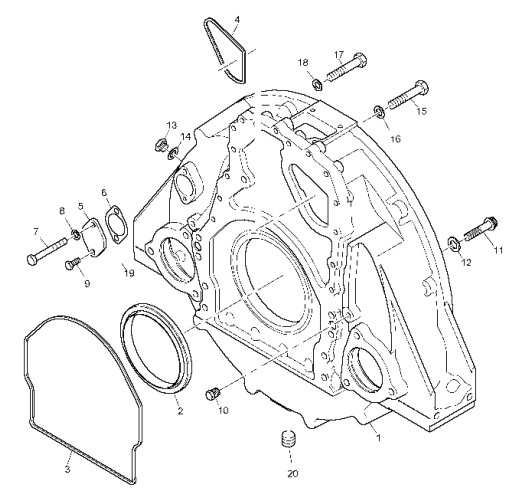

珀金斯柴油机后油封 ch11304  威尔信奥林匹亚卡特彼勒CAT强鹿柴油发电机

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH12371 1 CH12371 FLYWHEEL HOUSING

1 ch12371 1 ch12371飞轮壳

1 CH11584 1 CH12371 FLYWHEEL HOUSING

1 ch11584 1 ch12371飞轮壳

2 CH11304 1 CH11304 SEAL - REAR END OIL

2 ch11304 1 ch11304后端油密封

3 CH12062 1 CH12062 SEAL

3 ch12062 1 ch12062密封

3 CH11583 1 CH12062 SEAL

3 ch11583 1 ch12062密封

4 CH12063 1 CH12063 SEAL

4 ch12063 1 ch12063密封

4 CH11582 1 CH12063 SEAL

4 ch11582 1 ch12063密封

5 CH10539 1 CH10539 BLANKING COVER

5 ch10539 1 ch10539堵盖

6 CH10540 1 CH10540 GASKET

6 ch10540 1 ch10540垫片

7 CH10538 1 CH10538 BOLT

7 ch10538 1 ch10538螺栓

8 CH10255 2 CH10255 WASHER

8 ch10255 2 ch10255垫圈

8 CH10541 2 CH10255 WASHER

8 ch10541 2 ch10255垫圈

9 CH11895 1 CH11895 BOLT

9 ch11895 1 ch11895螺栓

9 CH10537 1 CH11895 BOLT

9 ch10537 1 ch11895螺栓

10 CH10262 2 CH10262 PLUG

10 ch10262 2 ch10262插头

11 CH11587 9 CH11587 BOLT

11 ch11587 9 ch11587螺栓

12 CH10099 9 CH10099 WASHER

12 ch10099 9 ch10099垫圈

13 CH10939 1 CH10939 DRAIN PLUG

13 ch10939 1 ch10939塞

14 CH10940 1 CH10940 GASKET

14 ch10940 1 ch10940垫片

15 CH11585 8 CH11585 BOLT

15 ch11585 8 ch11585螺栓

16 CH10255 8 CH10255 WASHER

16 ch10255 8 ch10255垫圈

16 CH10541 8 CH10255 WASHER

16 ch10541 8 ch10255垫圈

17 CH11586 7 CH11586 BOLT

17 ch11586 7 ch11586螺栓

18 CH10255 7 CH10255 WASHER

18 ch10255 7 ch10255垫圈

18 CH10541 7 CH10255 WASHER

18 ch10541 7 ch10255垫圈

19 CH11588 1 CH11588 PLUG

19 ch11588 1 ch11588插头

20 CH10220 1 CH10220 PLUG

20 ch10220 1 ch10220插头

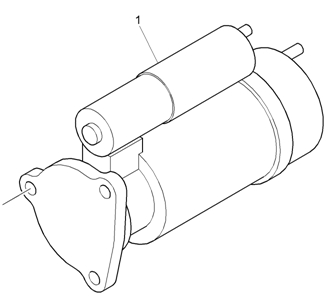

珀金斯2806柴油机柴油发电机配件启动马达ch11441  威尔信奥林匹亚

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11441 1 CH11441 STARTER MOTOR

1 ch11441 1 ch11441起动机

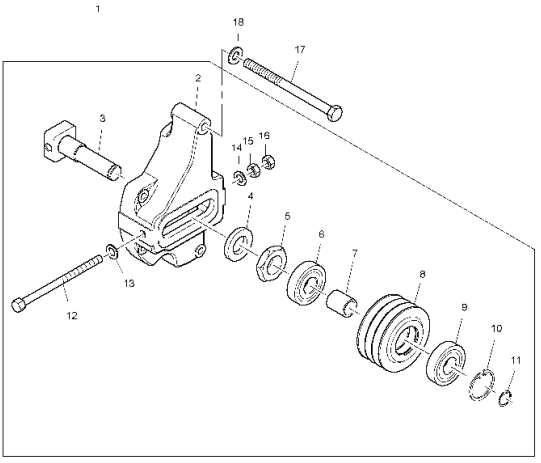

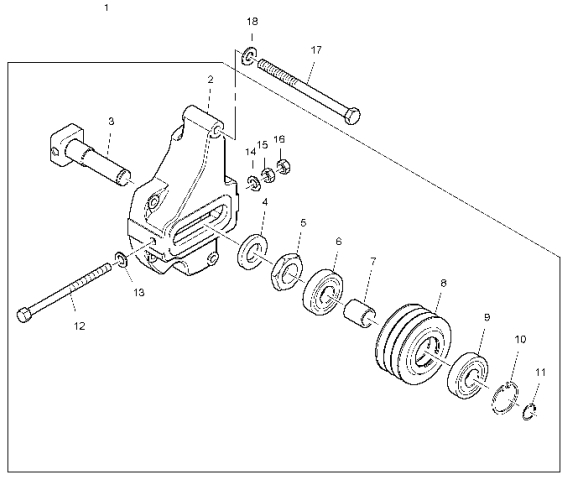

珀金斯柴油机张紧轮cv17732销售服务中心 强鹿 道依茨 康明斯

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11024 1 CH11024 TENSIONER ARM

1 ch11024 1 ch11024张紧轮

1 CH11024 1 CH11024 TENSIONER ARM

1 ch11024 1 ch11024张紧臂

17 CH10813 4 CH10813 BOLT

17 ch10813 4 ch10813螺栓

18 ST15903 4 ST15903 WASHER

18 st15903 4 st15903垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

2131A012 2 2131A012 WASHER

2131a012 2 2131a012垫圈

2318A210 2 2318A210 NUT

2318a210 2 2318a210螺母

CH11444 2 CH11444 BALL BEARING

ch11444 2 ch11444滚珠轴承

2 1 HOUSING

2 1房

3 CV17729 1 CV17729 SHAFT

3 cv17729 1 cv17729轴

4 CV17731 1 CV17731 WASHER

4 cv17731 1 cv17731垫圈

5 CV5324 1 CV5324 NUT

5 cv5324 1 cv5324螺母

6 CH11444 1 CH11444 BALL BEARING

6 ch11444 1 ch11444滚珠轴承

7 CV17765 1 CV17765 SLEEVE

7 cv17765 1 cv17765套

8 CV17732 1 CV17732 TENSIONER PULLEY

8 cv17732 1 cv17732涨紧轮

9 CH11444 1 CH11444 BALL BEARING

9 ch11444 1 ch11444滚珠轴承

10 2722A022 1 2722A022 CIRCLIP

10 2722a022 1 2722a022卡簧

11 2721351 1 2721351 CIRCLIP

11 2721351 1 2721351卡簧

12 CV19793 1 CV19793 BOLT

12 cv19793 1 cv19793螺栓

13 2131A012 1 2131A012 WASHER

13 2131a012 1 2131a012垫圈

14 2131A012 1 2131A012 WASHER

14 2131a012 1 2131a012垫圈

15 2318A210 1 2318A210 NUT

15 2318a210 1 2318a210螺母

16 2318A210 1 2318A210 NUT

16 2318a210 1 2318a210螺母

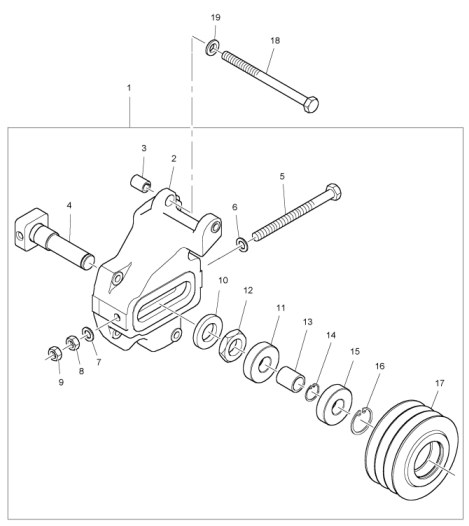

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH12832 1 T400228 TENSIONER ARM

1 ch12832 1 t400228张紧臂

18 CH10813 4 CH10813 BOLT

18 ch10813 4 ch10813螺栓

19 ST15903 4 ST15903 WASHER

19 st15903 4 st15903垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

2 1 TENSIONER

2 1张紧器

3 CH12834 1 CH12834 BUSH

3 ch12834 1 ch12834布什

4 1 SHAFT

4 1轴

5 1 BOLT

5 1螺栓

6 2131A012 1 2131A012 WASHER

6 2131a012 1 2131a012垫圈

7 2131A012 1 2131A012 WASHER

7 2131a012 1 2131a012垫圈

8 2318A210 1 2318A210 NUT

8 2318a210 1 2318a210螺母

9 2318A210 1 2318A210 NUT

9 2318a210 1 2318a210螺母

10 1 WASHER

1垫圈10

11 CH11444 1 CH11444 BALL BEARING

11 ch11444 1 ch11444滚珠轴承

12 1 NUT

1螺母12

13 1 SLEEVE

13 1套

14 2722A022 1 2722A022 CIRCLIP

14 2722a022 1 2722a022卡簧

15 CH11444 1 CH11444 BALL BEARING

15 ch11444 1 ch11444滚珠轴承

16 2721351 1 2721351 CIRCLIP

16 2721351 1 2721351卡簧

17 CH12872 1 T400228 TENSIONER PULLEY

17 ch12872 1 t400228涨紧轮

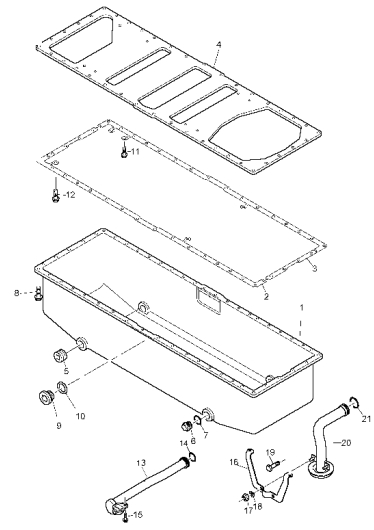

珀金斯2806柴油机油底壳垫片ch11572 威尔信奥林匹亚发电机配件

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

CH10132 2 CH10132 SEAL - O RING

ch10132 2 ch10132密封O形环

CH10541 3 CH10255 WASHER

ch10541 3 ch10255垫圈

CH10815 3 CH10815 BOLT

ch10815 3 ch10815螺栓

1 CH11569 1 CH11569 SUMP

1 ch11569 1 ch11569油底壳

2 CH12739 1 CH12739 GASKET - SUMP

2 ch12739 1 ch12739垫片槽

2 CH11572 1 CH11572 GASKET - SUMP

2 ch11572 1 ch11572垫片槽

2 CH11904 1 CH12739 GASKET - SUMP

2 ch11904 1 ch12739垫片槽

3 CH12739 1 CH12739 GASKET - SUMP

3 ch12739 1 ch12739垫片槽

3 CH11904 1 CH12739 GASKET - SUMP

3 ch11904 1 ch12739垫片槽

4 CH11570 1 CH11570 PLATE

4 ch11570 1 ch11570板

5 CH10259 3 CH10259 PLUG

5 ch10259 3 ch10259插头

6 CH11571 1 CH11571 DRAIN PLUG

6 ch11571 1 ch11571塞

7 T400201 1 T400201 SEAL - O RING

7 t400201 1 t400201密封O形环

7 CH11573 1 CH11573 SEAL - O RING

7 ch11573 1 ch11573密封O形环

8 CH10748 40 CH10748 BOLT

8 ch10748 40 ch10748螺栓

9 CH10285 1 CH10285 PLUG

9 ch10285 1 ch10285插头

9 CH10282 1 CH10282 PLUG

9 ch10282 1 ch10282插头

10 T409314 1 T409314 SEAL - O RING

10 t409314 1 t409314密封O形环

10 CH10665 1 CH10665 SEAL - O RING

10 ch10665 1 ch10665密封O形环

11 CH10567 2 CH10567 BOLT

11 ch10567 2 ch10567螺栓

12 CH10567 3 CH10567 BOLT

12 ch10567 3 ch10567螺栓

12 CH11572 1 CH11572 GASKET - SUMP

12 ch11572 1 ch11572垫片槽

13 CH10786 1 CH10786 OIL PIPE

13 ch10786 1 ch10786油管

14 CH11906 1 CH11906 SEAL - O RING

14 ch11906 1 ch11906密封O形环

15 CH10550 2 CH10550 BOLT

15 ch10550 2 ch10550螺栓

16 CH10855 1 CH10855 SUPPORT BRACKET

16 ch10855 1 ch10855支架

17 CH10785 2 CH10785 LOCKNUT

17 ch10785 2 ch10785锁紧螺母

18 CH10615 2 CH10615 WASHER

18 ch10615 2 ch10615垫圈

19 CH11645 1 CH11645 BOLT

19 ch11645 1 ch11645螺栓

20 CH11903 1 CH11903 PIPE - OIL SUCTION

20 ch11903 1 ch11903吸油管

21 CH11905 1 CH11905 SEAL - O RING

21 ch11905 1 ch11905密封O形环

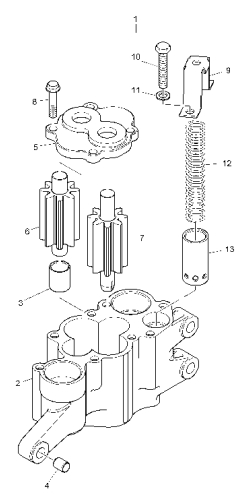

珀金斯机油泵ch10860 柴油机 发电机

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH10860 1 CH10860 OIL PUMP

1 ch10860 1 ch10860机油泵

(1) R/CH10860 1 R/CH10860 OIL PUMP - EXCHANGE

（1）R / ch10860 1 R / ch10860油泵交换

奥林匹亚柴油发电机配件水泵总成套件krp1715

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 KRP1678 1 KRP1715 WATER PUMP KIT

1 krp1678 1 krp1715水泵套件

1 KRP1644 1 KRP1715 WATER PUMP KIT

1 krp1644 1 krp1715水泵套件

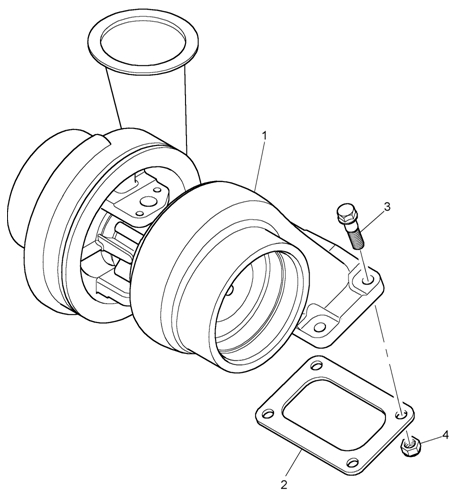

威尔信奥林匹亚发电机配件涡轮增压器ch11707

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11707 1 CH11707 TURBOCHARGER

1 ch11707 1

1 CH11762 1 CH11706 TURBOCHARGER

1 ch11762 1 ch11706涡轮增压器

2 CH11761 1 CH11761 GASKET - TURBOCHARGER

2 ch11761 1 ch11761垫片- TURBOCHARGER

3 CH10733 4 CH10733 BOLT

3 ch10733 4 ch10733螺栓

4 CH10734 4 CH10734 LOCKNUT

4 ch10734 4 ch10734锁紧螺母

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11706 1 CH11706 TURBOCHARGER

1 ch11706 1 ch11706涡轮增压器

1 CH11763 1 CH11707 TURBOCHARGER

1 ch11763 1 ch11707涡轮增压器

2 CH11761 1 CH11761 GASKET - TURBOCHARGER

2 ch11761 1 ch11761垫片- TURBOCHARGER

3 CH10733 4 CH10733 BOLT

3 ch10733 4 ch10733螺栓

4 CH10734 4 CH10734 LOCKNUT

4 ch10734 4 ch10734锁紧螺母

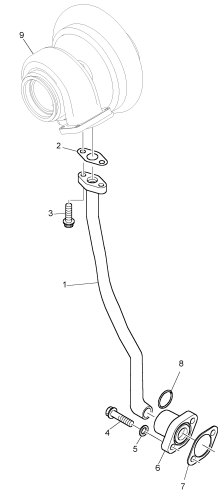

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11627 1 CH11627 PIPE - TURBO OIL DRAIN

1 ch11627 1 ch11627管涡轮油

2 CH11561 1 CH11561 GASKET

2 ch11561 1 ch11561垫片

3 CH11565 2 CH11565 BOLT

3 ch11565 2 ch11565螺栓

4 CH10585 2 CH10585 BOLT

4 ch10585 2 ch10585螺栓

5 CH10277 2 CH10277 WASHER

5 ch10277 2 ch10277垫圈

6 CH11624 1 CH11624 ELBOW

6 ch11624 1 ch11624肘

7 CH11560 1 CH11560 SEAL

7 ch11560 1 ch11560密封

8 CH11562 1 CH11562 SEAL - O RING

8 ch11562 1 ch11562密封O形环

9 1 TURBOCHARGER

9涡轮增压器1

珀金斯Perkins空气滤清器总成ch11390

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH11390 1 CH11390 AIR FILTER ASSEMBLY

1 ch11390 1

8 CH11401 1 CH11401 SAFETY AIR FILTER

8 ch11401 1 ch11401安全空气过滤器

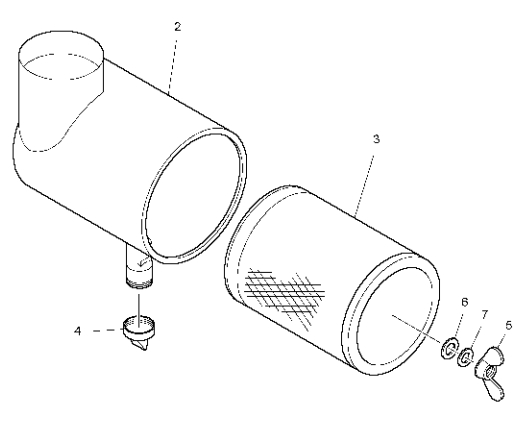

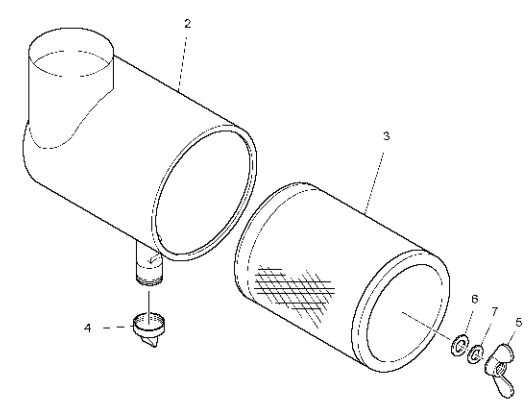

威尔信发电机配件空气滤芯ch11396

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

2 1 AIR FILTER

1空气过滤器2

3 CH11396 1 CH11396 AIR FILTER ELEMENT

3 ch11396 1 ch11396空气滤芯

4 CV4178 1 CV4178 VALVE

4 cv4178 1 cv4178阀

5 CH11898 1 CH11898 WING NUT

5 ch11898 1 ch11898翼形螺母

6 CH11899 1 CH11899 WASHER

6 ch11899 1 ch11899垫圈

7 CH11914 1 CH11914 CLIP

7 ch11914 1 ch11914夹

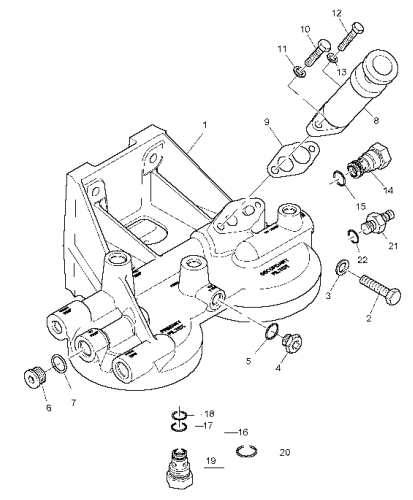

珀金斯Perkins柴油机手油泵ch10439

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH12434 1 CH12434 FUEL FILTER HEAD

1 ch12434 1 ch12434燃油滤头

1 CH11075 1 CH12434 FUEL FILTER HEAD

1 ch11075 1 ch12434燃油滤头

2 CH10609 1 CH11586 BOLT

2 ch10609 1 ch11586螺栓

3 CH10255 1 CH10255 WASHER

3 ch10255 1 ch10255垫圈

3 CH10541 1 CH10255 WASHER

3 ch10541 1 ch10255垫圈

4 CH10286 1 CH10286 PLUG

4 ch10286 1 ch10286插头

5 CH11880 1 CH11880 SEAL - O RING

5 ch11880 1 ch11880密封O形环

5 CH10046 1 CH10046 SEAL - O RING

5 ch10046 1 ch10046密封O形环

6 CH10287 1 CH10287 PLUG

6 ch10287 1 ch10287插头

7 T406205 1 T406205 SEAL - O RING

7 t406205 1 t406205密封O形环

7 CH10048 1 CH10048 SEAL - O RING

7 ch10048 1 ch10048密封O形环

8 CH10439 1 CH10439 PRIMING PUMP

8 ch10439 1 ch10439手油泵

9 CH10008 1 CH10008 GASKET

9 ch10008 1 ch10008垫片

10 CH10557 1 CH10557 BOLT

10 ch10557 1 ch10557螺栓

11 CH10277 1 CH10277 WASHER

11 ch10277 1 ch10277垫圈

11 CH10131 1 CH10131 SEAL - O RING

11 ch10131 1 ch10131密封O形环

12 CH10848 1 CH10848 BOLT

12 ch10848 1 ch10848螺栓

13 CH10086 1 CH10086 WASHER

13 ch10086 1 ch10086垫圈

14 CH10836 1 CH10836 VALVE

14 ch10836 1 ch10836阀

15 T400188 1 T400188 SEAL - O RING

15 t400188 1 t400188密封O形环

16 CH12017 1 CH12017 NON RETURN VALVE

16 ch12017 1 ch12017止回阀

16 CH10457 1 Check History VALVE

16 ch10457历史1检查阀

16 CH12017 1 CH12017 NON RETURN VALVE

16 ch12017 1 ch12017止回阀

20 CH10131 1 CH10131 SEAL - O RING

20 ch10131 1 ch10131密封O形环

21 CH11410 1 CH11410 PLUG

21 ch11410 1 ch11410插头

22 CH11880 1 CH11880 SEAL - O RING

22 ch11880 1 ch11880密封O形环

23 CH11411 1 CH11411 DUST SHIELD

23 ch11411 1 ch11411防尘罩

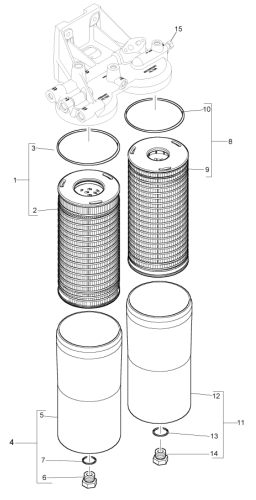

 珀金斯燃油滤清器ch10931  威尔信 奥林匹亚

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

1 CH10930 1 CH10930 PRE-FUEL FILTER

1 ch10930 1 ch10930 pre-fuel滤波器

4 CH11265 1 CH11265 FILTER HOUSING

4 ch11265 1 ch11265过滤器外壳

4 CH11094 1 Check History FILTER HOUSING

4 ch11094 1检查历史过滤器外壳

8 CH10931 1 CH10931 FUEL FILTER

8 ch10931 1 ch10931燃油滤清器

11 CH11266 1 CH11266 FUEL FILTER HOUSING

11 ch11266 1 ch11266燃油滤清器壳体

11 CH11096 1 Check History FUEL FILTER HOUSING

11 ch11096历史1检查燃油滤清器壳体

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

项目  数量   零件号    描述

2 1 FUEL FILTER ELEMENT

1燃油滤清器滤芯2

3 CH12010 1 CH12010 SEAL

3 ch12010 1 ch12010密封
